Weidmuller 2681580000 SAIBP-5A-4/8-M12
- MPN: 2681580000
- PPN: WDM-2681580000
CAD
$12.64
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

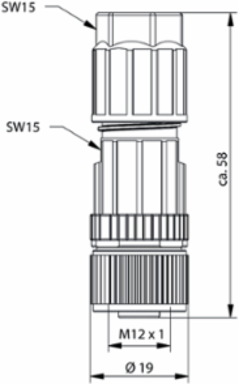

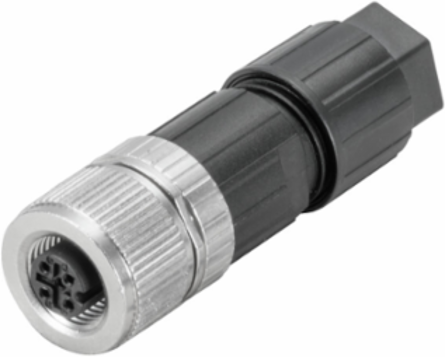

Sockets prefabricated to customer spec., M12, Female socket, straight
Specifications
Technical Data Customisable Plug-In Connectors
| Cable diameter, max. | 8 mm |
|---|---|
| Coding | A |
| Connection cross-section, min. | 0.14 mm² |
| Housing main material | PA 66 |
| Number of poles | 5 |
| Protection degree | IP67 |
| Rated voltage | 125 V |
| Temperature range of housing | -40 … +85 ° C |
| Type of connection | PUSH IN |
| Cable diameter, min. | 4 mm |
|---|---|
| Connection cross-section, max. | 0.75 mm² |
| Contact surface | Ni/Au |
| Insulation strength | ≥ 100 MΩ |
| Pollution severity | 3 |
| Rated current | 4 A |
| Shield connection | No |
| Threaded ring material | Diecast zinc |
Dimensions And Weights
| Net weight | 19 g |
|---|
Classifications
| ETIM 6.0 | EC002062 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
