Weidmuller 2681500000 SAIBP-4A-4/8-M12
Weidmuller 2681500000 SAIBP-4A-4/8-M12
- MPN: 2681500000
- PPN: WDM-2681500000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$10.55/ EA
Description

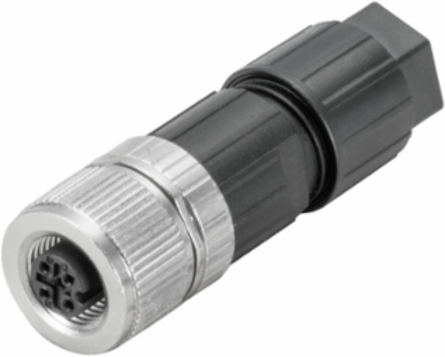

Sockets prefabricated to customer spec., M12, Female socket, straight
Specifications
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 8 mm
- Coding
- A
- Connection cross-section, min.
- 0.14 mm²
- Housing main material
- PA 66
- Number of poles
- 4
- Protection degree
- IP67
- Rated voltage
- 250 V
- Temperature range of housing
- -40 … +85 ° C
- Type of connection
- PUSH IN
Cable diameter, min.4 mm
Connection cross-section, max.0.75 mm²
Contact surfaceNi/Au
Insulation strength≥ 100 MΩ
Pollution severity3
Rated current4 A
Shield connectionNo
Threaded ring materialDiecast zinc
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
Dimensions And Weights
- Net weight
- 19 g
