Weidmuller 1867540000 SAI-4-F 4P PUR 10M OL
- MPN: 1867540000
- PPN: WDM-1867540000
CAD
$180.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

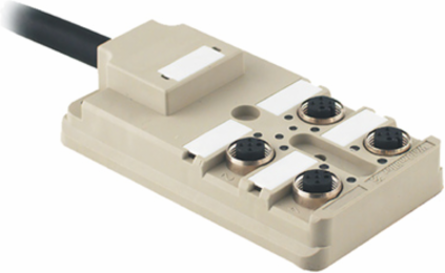

Sensor-actuator passive distributor, M12, Fixed cable version, 10 m, No
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Technical Data Cable
| Cable length | 10 m |
|---|---|
| Number of poles | 4 |
| O.D. | 7.5 mm |
| Colour coding | white, grey, green, yellow, blue, brown, Green/yellow |
| Sheathing colour | black |
| Bending radius, min., moving | 10 x cable diameter |
| Suitable for cable carriers | Yes |
|---|---|
| Wire cross section | 16 x 0.34 mm² + 3 x 1.0 mm² |
| Shielded | No |
| Sheath material | PUR |
| Halogen | No |
| Bending cycles | 2 Mio |

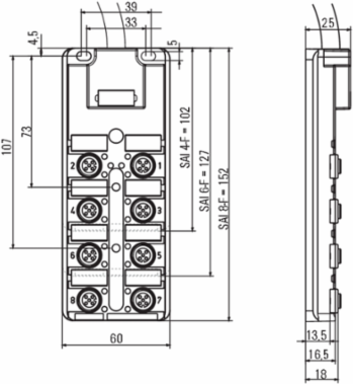

Dimensions And Weights
| Height | 25 mm |
|---|---|
| Net weight | 1,172 g |
| Height (inches) | 0.984 inch |
|---|
Electrical Data
| Rated voltage, min. | 10 V |
|---|---|
| Max. current-carrying capacity per slot | 4 A |
| Insulation strength | 109 Ω |
| Rated voltage, max. | 30 V |
|---|---|
| Total current | 10 A |
Connection Data
| Distributor outlet | Fixed cable version |
|---|
General Technical Data
| Protection degree | IP68 |
|---|---|
| Number of contact sockets | 4 |
| LED | No |
| Number of poles | 4 |
|---|---|
| Connection thread | M12 |
Material Data
| Housing main material | Pocan |
|---|---|
| Contact material | CuZn |
| Contact carrier material | PBT (UL 94 V0) |
| Housing colour | grey, RAL 7032 |
|---|---|
| Contact surface | Gold-plated |
Classifications
| ETIM 6.0 | EC002585 |
|---|---|
| eClass 9.0 | 27-44-01-08 |
| eClass 10.0 | 27-44-01-08 |
| ETIM 7.0 | EC002585 |
|---|---|
| eClass 9.1 | 27-44-01-08 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -20 - 70°C |
| Operating temperature, min. | -20 °C |
|---|
