Weidmuller 1806011000 SAI-4-M 5P M12 1:1 UT

  • MPN: 1806011000
  • PPN: WDM-1806011000

CAD

$141.13

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Sensor-actuator passive distributor, M12, No

Documentation & Downloads

Specifications

Approvals

ApprovalscURus
UL File Number SearchE141197
ROHSConform

Technical Data Cable

Number of poles5

Dimensions And Weights

Net weight116.5 g

Standards

Certificate No. (cURus)E141197

Electrical Data

Rated voltage, min.10 V
Test voltage1 kV
Total current8 A
Electrical isolation availableYes
Rated voltage, max.30 V
Max. current-carrying capacity per slot4 A
Current per signal2 A
Insulation strength109 Ω

General Technical Data

Protection degreeIP67
Number of contact sockets4
Pollution severity3
Plugging cycles≤ 50
LED initiatorNo
Number of poles5
Connection threadM12
Fire behaviourV-0
LEDNo

Material Data

Housing main materialPocan
Housing colourgrey, RAL 7032
Screw socketNickel-plated CuZn
Contact surfaceGold-plated
Material of distributorPlastic
Hood sealing materialViton
Contact materialCuZn
Contact carrier materialPBT (UL 94 V0)

Classifications

ETIM 6.0EC002585
eClass 9.027-44-01-08
eClass 10.027-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08
UNSPSC30-21-18-01

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature range, max.90 °C
Operating temperature, max.90 °C
Operating temperature-20 - 90°C
Operating temperature range, min.-20 °C
Operating temperature, min.-20 °C

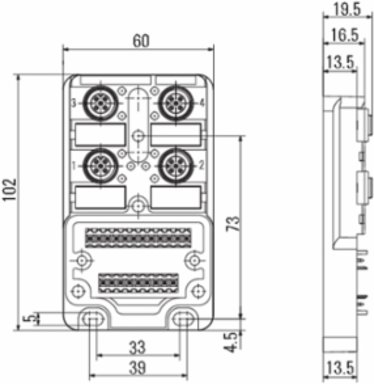

SAI-4-M 5P M12 1:1 UT

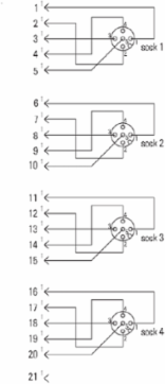

SAI-4-M 5P M12 1:1 UT

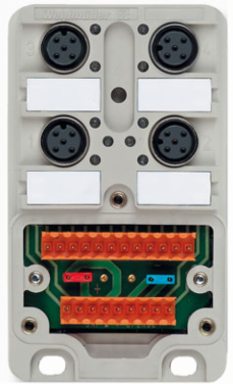

SAI-4-M 5P M12 1:1 UT
