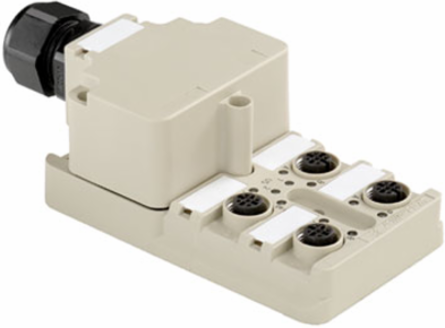

Weidmuller 1892100005 SAI-4-M 5P M12 NPN ECO
- MPN: 1892100005
- PPN: WDM-1892100005
CAD
$129.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sensor-actuator passive distributor, M12, Hood version, Yes
Documentation & Downloads
Specifications
Approvals
- Approvals
- cURus
- UL File Number Search
- E141197
ROHSConform
Technical Data Cable
- Suitable for cable carriers
- No
Number of poles5

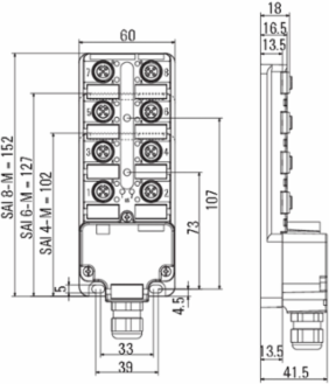

Dimensions And Weights
- Net weight
- 202 g
Standards
- Certificate No. (cURus)
- E141197
Electrical Data
- Rated voltage, min.
- 10 V
- Test voltage
- 1 kV
- Insulation strength
- 109 Ω
Rated voltage, max.30 V
Max. current-carrying capacity per slot4 A
Connection Data
- Clamping range, min.
- 0.08 mm²
- Distributor outlet
- Hood version
Clamping range, max.1.5 mm²
General Technical Data
- Number of poles
- 5
- Connection thread
- M12
- Fire behaviour
- V-0
- LED
- Yes
- LED colour for I/O function
- yellow
Number of contact sockets4
Pollution severity3
Plugging cycles≤ 50
LED colour for indicating operationgreen
Material Data
- Housing main material
- Pocan
- Housing colour
- grey, RAL 7032
- Contact material
- CuZn
- Contact carrier material
- PBT (UL 94 V0)
Material of distributorPlastic
Hood sealing materialViton
Contact surfaceGold-plated
Classifications
- ETIM 6.0
- EC002585
- eClass 9.0
- 27-44-01-08
- eClass 10.0
- 27-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08
UNSPSC26-12-16-13
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
