Weidmuller 1701232000 SAI-4-MH-5P M12
- MPN: 1701232000
- PPN: WDM-1701232000
CAD
$256.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

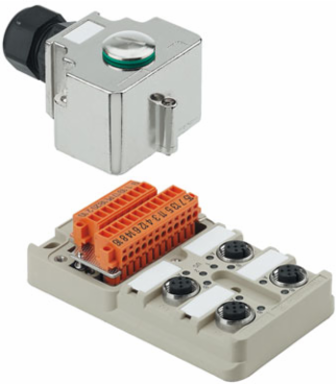

SAI Passive, Sensor-actuator passive distributor, M12, Hood version with M20 outlet, Yes
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Technical Data Cable
- Suitable for cable carriers
- No
- Conductor O.D., min.
- 10 mm
Number of poles5
Conductor O.D., max.14 mm

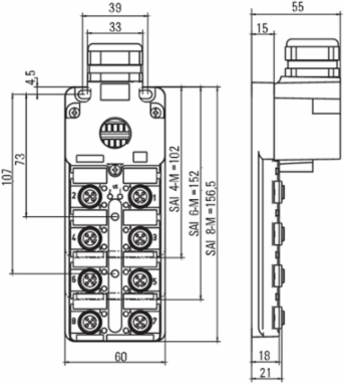

Dimensions And Weights
- Width
- 60 mm
- Height
- 55 mm
- Depth
- 102 mm
- Net weight
- 490 g
Width (inches)2.362 inch
Height (inches)2.165 inch
Depth (inches)4.016 inch
Electrical Data
- Rated voltage, min.
- 10 V
- Test voltage
- 1 kV
- Total current
- 10 A
- Electrical isolation available
- Yes
Rated voltage, max.30 V
Max. current-carrying capacity per slot4 A
Current per signal2 A
Insulation strength109 Ω
Connection Data
- Conductor O.D., min.
- 10 mm
- Cable glands
- M 20
- Clamping range, max.
- 1.5 mm²
- Distributor outlet
- Hood version with M20 outlet
Conductor O.D., max.14 mm
Clamping range, min.0.08 mm²
Storage spacegross
Connection type PEScrew connection
General Technical Data
- Number of poles
- 5
- Connection thread
- M12
- Fire behaviour
- V-0
- LED
- Yes
- LED colour for indicating operation
- green
Number of contact sockets4
Pollution severity3
Plugging cycles≤ 50
LED initiatorYes
LED colour for I/O functionyellow
Material Data
- Housing main material
- Pocan (base module), Zinc diecast (hood)
- Housing colour
- silver
- Screw socket
- Nickel-plated CuZn
- Contact surface
- Gold-plated
Material of distributormetal
Hood sealing materialPolyurethane foamed
Contact materialCuZn
Contact carrier materialPBT (UL 94 V0)
Classifications
- ETIM 6.0
- EC002585
- eClass 9.0
- 27-44-01-08
- eClass 10.0
- 27-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 90 °C
- Operating temperature, max.
- 90 °C
- Operating temperature
- -20 - 90°C
Operating temperature range, min.-20 °C
Operating temperature, min.-20 °C
