Weidmuller 1784500000 SAI-8-F 5P 20M 0.5/1.0U
- MPN: 1784500000
- PPN: WDM-1784500000
CAD
$370.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

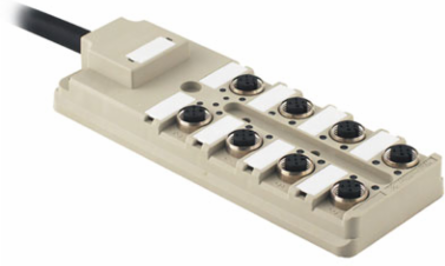

Sensor-actuator passive distributor, M12, Fixed cable version, 20 m, Yes
Documentation & Downloads
Specifications
Approvals
- Approvals
- cURus
- UL File Number Search
- E141197
ROHSConform
Technical Data Cable
- Cable length
- 20 m
- Armoured line
- 16 x 0,5 mm² + 3 x 1 mm²
- Wire cross section
- 16 x 0.5 mm² + 3 x 1.0 mm²

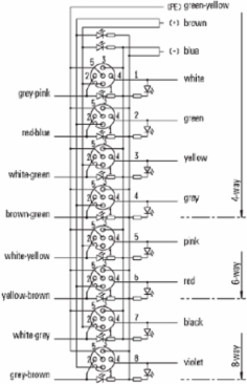

- Colour coding
- blue, brown, Green/yellow, yellow, grey, green, white, pink, red, black, violet, grey / pink, red / blue, white / green, brown / green, white / yellow, Yellow / brown, grey / brown
- Bending radius, min., stationary
- 5 x cable diameter
Suitable for cable carriersYes
Number of poles5
O.D.12.3 mm
Sheathing colourDeep black
Bending radius, min., moving10 x cable diameter

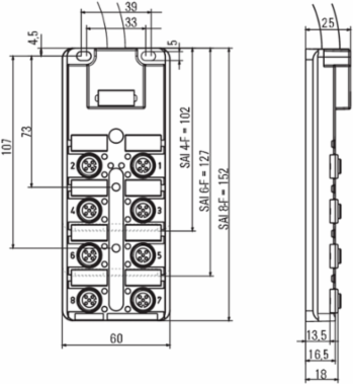

Dimensions And Weights
- Height
- 25 mm
- Net weight
- 3,300 g
Height (inches)0.984 inch
Standards
- Certificate No. (cURus)
- E141197
Electrical Data
- Rated voltage, min.
- 10 V
- Test voltage
- 1 kV
- Total current
- 9 A
- Electrical isolation available
- No
Rated voltage, max.30 V
Max. current-carrying capacity per slot4 A
Current per signal2 A
Insulation strength109 Ω
Connection Data
- Sheathing stripping length
- 100 mm
Distributor outletFixed cable version
General Technical Data
- Protection degree
- IP68
- Number of contact sockets
- 8
- Pollution severity
- 3
- Plugging cycles
- ≤ 50
- LED initiator
- Yes
- LED colour for I/O function
- yellow
Number of poles5
Connection threadM12
Fire behaviourV-0
LEDYes
LED colour for indicating operationgreen
Material Data
- Housing main material
- Pocan
- Housing colour
- grey, RAL 7032
- Screw socket
- Nickel-plated CuZn
- Contact surface
- Gold-plated
Material of distributorPlastic
Hood sealing materialViton
Contact materialCuZn
Contact carrier materialPBT (UL 94 V0)
Classifications
- ETIM 6.0
- EC002585
- eClass 9.0
- 27-44-01-08
- eClass 10.0
- 27-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 80 °C
- Operating temperature, max.
- 80 °C
- Operating temperature
- -20 - 80°C
Operating temperature range, min.-20 °C
Operating temperature, min.-20 °C
