Weidmuller 1814990000 SAI-8-F 5P NPN-PNP 5M
- MPN: 1814990000
- PPN: WDM-1814990000
CAD
$415.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

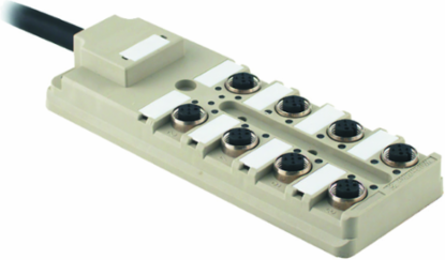

Sensor-actuator passive distributor, M12, Fixed cable version, 5 m, Yes
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Technical Data Cable
| Cable length | 5 m |
|---|---|
| Number of poles | 5 |
| O.D. | 8.2 mm |
| Colour coding | white, black, red, pink, violet, yellow, green, grey, blue, brown, Green/yellow |
| Sheathing colour | black |
| Bending radius, min., moving | 10 x cable diameter |
| Suitable for cable carriers | Yes |
|---|---|
| Wire cross section | 8 x 0.34 mm² + 3 x 1.0 mm² |
| Shielded | No |
| Sheath material | PUR |
| Halogen | No |
| Bending cycles | 2 Mio |

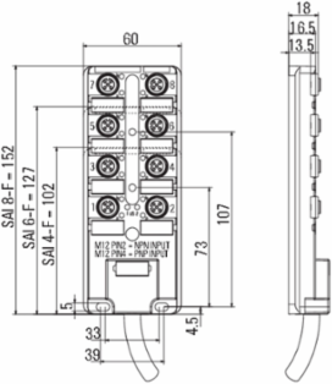

Dimensions And Weights
| Height | 25 mm |
|---|---|
| Depth | 152 mm |
| Net weight | 715 g |
| Height (inches) | 0.984 inch |
|---|---|
| Depth (inches) | 5.984 inch |
Electrical Data
| Rated voltage, min. | 10 V |
|---|---|
| Test voltage | 1 kV |
| Insulation strength | 109 Ω |
| Rated voltage, max. | 30 V |
|---|---|
| Max. current-carrying capacity per slot | 4 A |
Connection Data
| Distributor outlet | Fixed cable version |
|---|
General Technical Data
| Protection degree | IP68 |
|---|---|
| Number of contact sockets | 8 |
| Pollution severity | 3 |
| Plugging cycles | ≤ 50 |
| LED initiator | Yes |
| LED colour for I/O function | yellow |
| Number of poles | 5 |
|---|---|
| Connection thread | M12 |
| Fire behaviour | V-0 |
| LED | Yes |
| LED colour for indicating operation | green |
Material Data
| Housing main material | Pocan |
|---|---|
| Housing colour | grey, RAL 7032 |
| Screw socket | Nickel-plated CuZn |
| Contact surface | Gold-plated |
| Material of distributor | Plastic |
|---|---|
| Hood sealing material | Viton |
| Contact material | CuZn |
| Contact carrier material | PBT (UL 94 V0) |
Classifications
| ETIM 6.0 | EC002585 |
|---|---|
| eClass 9.0 | 27-44-01-08 |
| eClass 10.0 | 27-44-01-08 |
| ETIM 7.0 | EC002585 |
|---|---|
| eClass 9.1 | 27-44-01-08 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Operating temperature | 0 - 50°C |
| Operating temperature, min. | 0 °C |
|---|
