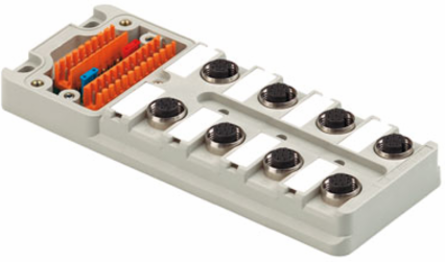

Weidmuller 1766801000 SAI-8-M 4P IDC UT
- MPN: 1766801000
- PPN: WDM-1766801000
CAD
$182.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAI Passive, Sensor-actuator passive distributor, IDC, M12, Hood version, Yes
Documentation & Downloads
Specifications
Approvals
| Approvals | CULUS, EAC |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Technical Data Cable
| Suitable for cable carriers | No |
|---|---|
| Conductor O.D., min. | 1.2 mm |
| Number of poles | 4 |
|---|---|
| Conductor O.D., max. | 1.6 mm |

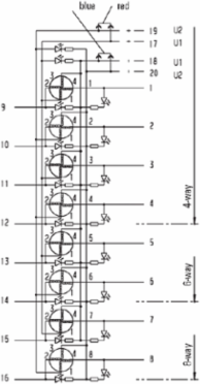

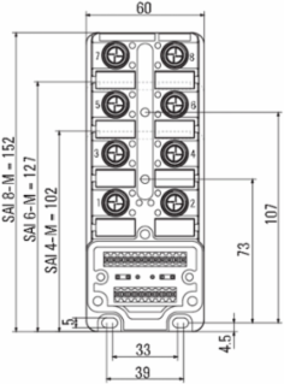

Dimensions And Weights
| Width | 60 mm |
|---|---|
| Height | 41.5 mm |
| Depth | 152 mm |
| Net weight | 185.5 g |
| Width (inches) | 2.362 inch |
|---|---|
| Height (inches) | 1.634 inch |
| Depth (inches) | 5.984 inch |
Standards
| Certificate no. (cULus) | E141197 |
|---|
Electrical Data
| Rated voltage, min. | 10 V |
|---|---|
| Test voltage | 1 kV |
| Total current | 10 A |
| Electrical isolation available | Yes |
| Rated voltage, max. | 30 V |
|---|---|
| Max. current-carrying capacity per slot | 4 A |
| Current per signal | 2 A |
| Insulation strength | 109 Ω |
Connection Data
| Conductor O.D., min. | 1.2 mm |
|---|---|
| Clamping range, min. | 0.08 mm² |
| max. connection of equal cross-section | 10 |
| Distributor outlet | Hood version |
| Conductor O.D., max. | 1.6 mm |
|---|---|
| Clamping range, max. | 1.5 mm² |
| Storage space | Standard |
General Technical Data
| Protection degree | IP67 |
|---|---|
| Number of contact sockets | 8 |
| Pollution severity | 2 |
| LED | Yes |
| LED colour for indicating operation | green |
| Number of poles | 4 |
|---|---|
| Connection thread | M12 |
| Fire behaviour | V-0 |
| LED initiator | Yes |
| LED colour for I/O function | yellow |
Material Data
| Housing main material | Pocan |
|---|---|
| Housing colour | grey, RAL 7032 |
| Screw socket | Nickel-plated CuZn |
| Contact surface | Gold-plated |
| Material of distributor | Plastic |
|---|---|
| Hood sealing material | Viton |
| Contact material | CuZn |
| Contact carrier material | PBT (UL 94 V0) |
Classifications
| ETIM 6.0 | EC002585 |
|---|---|
| eClass 9.0 | 27-44-01-08 |
| eClass 10.0 | 27-44-01-08 |
| ETIM 7.0 | EC002585 |
|---|---|
| eClass 9.1 | 27-44-01-08 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature range, max. | 90 °C |
|---|---|
| Operating temperature, max. | 90 °C |
| Operating temperature | -20 - 90°C |
| Operating temperature range, min. | -20 °C |
|---|---|
| Operating temperature, min. | -20 °C |
