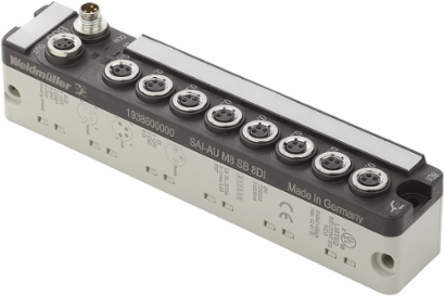

Weidmuller 1938600000 SAI-AU M8 SB 8DI
- MPN: 1938600000
- PPN: WDM-1938600000
CAD
$312.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAI Active, Subbus, Complete modul
Documentation & Downloads
Specifications
General Data
| Certificate | CE, cULus |
|---|---|
| Housing main material | Pocan, PBT |
| Protection degree | IP67 |
| Earth | < 200 g |
|---|---|
| L x W x H | 155 / 30 / 32 |
| UL 94 flammability rating | 5VA |
Approvals
| Approvals | CE, CULUS |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Digital Inputs
| Diagnosis indication | red |
|---|---|
| Input current, low | < 15 mA in accordance with EN 61131-2 Type 1 |
| Input voltage, high | >15 V in accordance with EN 61131-2 Type 1 |
| Permitted input voltage | -30 V to +30 V (protected against polarity reversal) |
| Input current, high | 2 mA to 15 mA in accordance with EN 61131-2 Type 1 |
|---|---|
| Input filter | 1 ms, 3 ms, 5 ms, 10 ms, configurable |
| Input voltage, low | <5 V in accordance with EN 61131-2 Type 1 |
| Separation of potentials to module electronics | none |
Dimensions And Weights
| Length | 155 mm |
|---|---|
| Width | 30 mm |
| Height | 32 mm |
| Net weight | 265 g |
| Length (inches) | 6.102 inch |
|---|---|
| Width (inches) | 1.181 inch |
| Height (inches) | 1.26 inch |
Digital Outputs
| Diagnosis indication | red |
|---|
Connections
| Connection to Subbus (SUB-IN) | 1 x M8 plug 4-pole, A-coded |
|---|---|
| I/O connections | 8 x M8 socket 3-pole |
| Connection to Subbus (SUB-OUT) | 1 x M8 female 4-pole, A-coded |
|---|
Supply Voltage
| Limits | 18 V DC ... 30 V DC |
|---|---|
| Reverse polarity protection | Yes |
| Operating voltage | 24 V |
|---|
Classifications
| ETIM 6.0 | EC001601 |
|---|---|
| eClass 9.0 | 27-24-26-05 |
| eClass 10.0 | 27-24-26-05 |
| ETIM 7.0 | EC001601 |
|---|---|
| eClass 9.1 | 27-24-26-90 |
| UNSPSC | 43-17-27-10 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Data
| Module type | Complete modul |
|---|
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | 0 °C...60 °C |
| Operating temperature, min. | 0 °C |
|---|---|
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...85 °C |
