Weidmuller 1341240050 SAIE-M12S-8S0.5U HW
- MPN: 1341240050
- PPN: WDM-1341240050
CAD
$32.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

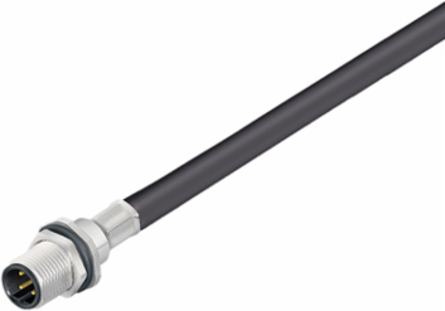

Built-in plugs, M12, PG 9, Number of poles: 8
Documentation & Downloads
Specifications
General Data
| Cable glands | PG 9 |
|---|---|
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast, nickel-plated |

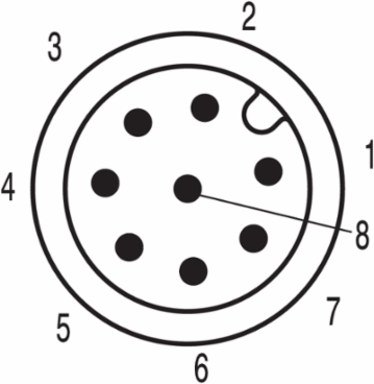

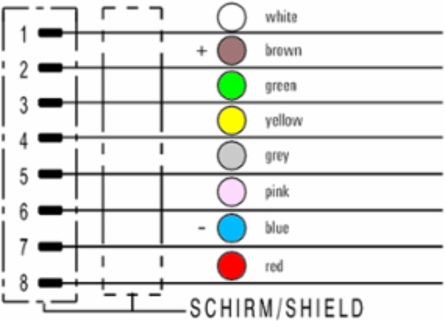

| Number of poles | 8 |
| Protection degree | IP68 |
| Rated voltage | 60 V |
| Sheathing colour | black |
| Temperature range of housing | -5 … +70 °C |
| Connection thread | M12 |
|---|---|
| Core cross-section | 0.25 mm² |
| Material | PUR/ PVC |
| Plugging cycles | ≥ 100 |
| Rated current | 4 A (5-pole), 2 A (8-pole) |
| Rated voltage (text) | 125 V (5-pole) / 60 V (8-pole) |
| Strand / cable length | 0.5 m |
| Type of connection | Pin |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 46 g |
|---|
Classifications
| ETIM 6.0 | EC002635 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
