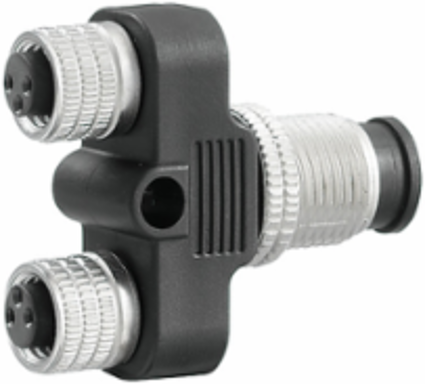

Weidmuller 1771290000 SAI-Y-5-SO M12/8
- MPN: 1771290000
- PPN: WDM-1771290000
CAD
$18.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Y connector, M12 / M8
Specifications
General Data
| Coding | M12 = A, M8 = none |
|---|---|
| Contact surface | Au (Gold) |
| Number of poles | 5 |
| Pollution severity | 3 |
| Rated current | 4 A |
| Shield connection | No |
| Connection thread | M12 / M8 |
|---|---|
| Housing main material | PUR |
| Plugging cycles | ≥ 100 |
| Protection degree | IP67 |
| Rated voltage | 24 V |
| Temperature range of housing | -25…+85 °C |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 18 g |
|---|
Connection Data
| Group outlet - plug-in connector | M12 pin |
|---|---|
| Single outlet 2 - plug-in connector | M8 socket |
| Single outlet 1 - plug-in connector | M8 socket |
|---|---|
| Tightening torque | M12: 0.8 - 1.2 Nm, M8: 0.5 - 0.6 Nm |
Classifications
| ETIM 6.0 | EC002925 |
|---|---|
| eClass 9.0 | 27-44-01-06 |
| eClass 10.0 | 27-44-01-06 |
| ETIM 7.0 | EC002925 |
|---|---|
| eClass 9.1 | 27-44-01-06 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
