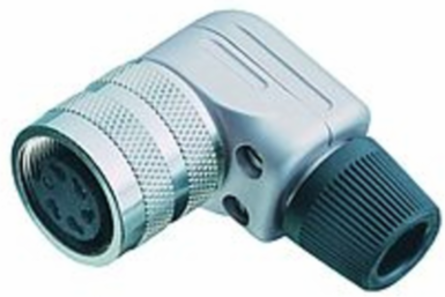

Weidmuller 1361740000 SAIBW-M16-6/9S
- MPN: 1361740000
- PPN: WDM-1361740000
CAD
$23.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Plugs prefabricated to customer spec., M16, Socket, angled
Specifications
Technical Data Customisable Plug-In Connectors
| Cable diameter, max. | 8 mm |
|---|---|
| Cable glands | PG 9 |
| Connection cross-section, max. | 0.75 mm² |
| Contact surface | Ag (silver) |
| Insulation strength | 108 Ω |
| Plugging cycles | ≥ 500 |
| Protection degree | IP40 |
| Rated voltage | 250 V |
| Temperature range of housing | -40 … +85 ° C |
| Type of connection | Solder connection |
| Cable diameter, min. | 6 mm |
|---|---|
| Coding | none |
| Connection cross-section, min. | 0.14 mm² |
| Housing main material | PA |
| Number of poles | 6 |
| Pollution severity | 3 |
| Rated current | 5 A |
| Shield connection | Yes |
| Threaded ring material | Diecast zinc |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 80 g |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
