Weidmuller

Weidmuller 1009870000 VGM25-SS 68 KB 10-14

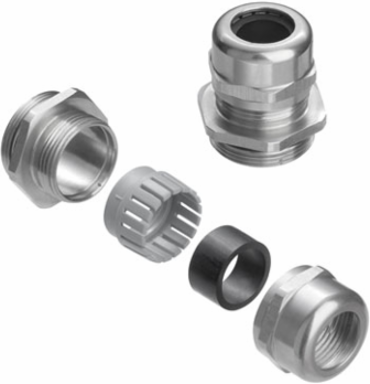

VGM25-SS 68 KB 10-14
  • MPN: 1009870000
  • PPN: WDM-1009870000

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$64.68/ EA

Description

VGM25-SS 68 KB 10-14

Specifications

Length
35.5 mm
Approvals
CE, VDE, UL, UR, cULus, DNV GL, EN 45545
Protection Class (UL)
Type 4X
Material
Stainless steel 1.4305 (303)
Outer Cable Diameter, Min
10 mm
Length of Thread
8 mm
Height
37.5 mm
Seal Insert Material
CR
O-Ring Material
NBR
Torque for Cap Nut, Max
11.5 Nm
Torque for Connecting Adapter, Max
6.5 Nm
Halogen Free
Yes
Net Weight39.2 g
Protection DegreeIP54, IP66, IP67, IP68 (5 bar, 30 min), IP69K
Cable Gland TypeStainless steel
Cable Gland MetricM 25
Outer Cable Diameter, Max14 mm
Pitch of Thread1.5 mm
Operating Temperature Range-40 °C to 100 °C
Sealing MaterialNBR
Tightening Torque11 Nm
Torque for Cap Nut, Min10.5 Nm
Torque for Connecting Adapter, Min5.5 Nm
RoHS ComplianceCompliant without exemption

Downloads
