Weidmuller

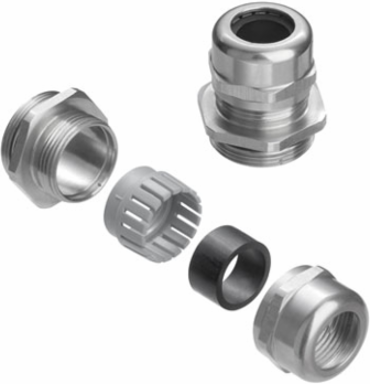

Weidmuller 1009880000 VGM32-SS 68 KB 13-18

VGM32-SS 68 KB 13-18
  • MPN: 1009880000
  • PPN: WDM-1009880000

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$79.80/ EA

Specifications

Length
41.5 mm (1.634 inch)
Cable Gland Type
Straight
Thread Pitch
1.5 mm
Outer Cable Diameter
13 mm to 18 mm
Seal Insert Material
CR
Operating Temperature Range
-40 °C to 100 °C
Torque for Connecting Adapter
5.5 Nm to 6.5 Nm
AF Size 2
36 mm
Protection Class (UL)
Type 4X
eClass 9.0
27-14-44-32
eClass 10.0
27-14-44-32
ETIM 7.0
EC000441
Net Weight76.35 g
Thread MetricM32
Length of Thread9 mm
Basic MaterialStainless steel 1.4305 (303)
Sealing MaterialNBR
Torque for Cap Nut16.5 Nm to 17.5 Nm
AF Size 130 mm
Protection DegreeIP54, IP66, IP67, IP68 (5 bar, 30 min), IP69K
ComplianceRoHS Conform, CE
eClass 9.127-14-44-32
ETIM 6.0EC000441
