Weidmuller 1292330000 SAIE-7/8S-3-0.2U-PG11
- MPN: 1292330000
- PPN: WDM-1292330000
CAD
$19.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

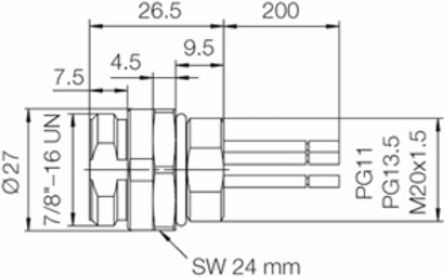

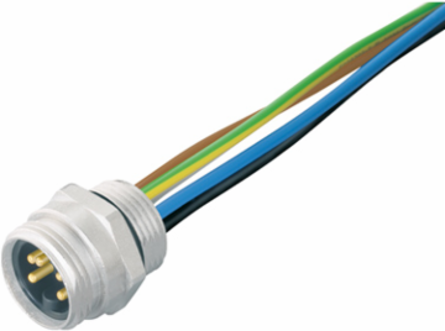

Built-in plugs, 7/8", PG 11, Number of poles: 3
Documentation & Downloads
Specifications
General Data
- Cable glands
- PG 11
- Connection thread
- 7/8"
- Contact surface
- Gold-plated
- Housing main material
- Zinc diecast, nickel-plated

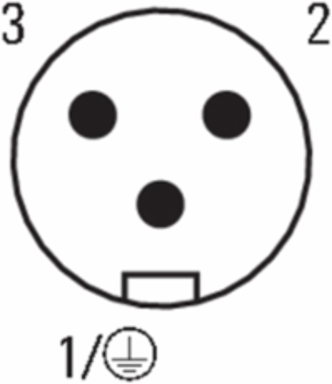

- Number of poles
- 3
- Protection degree
- IP67, when screwed in
- Rated voltage
- 300 V
- Temperature range of housing
- -25…+85 °C
Codingnone
Contact materialCuZn
Core cross-section0.75 mm²
MaterialPUR/ PUR
Plugging cycles≥ 100
Rated current8 A (4- and 5-pole), 10 A (3-pole)
Strand / cable length0.2 m
Type of connectionPin
Approvals
- Approvals
- cURus
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 39 g
Standards
- Certificate No. (cURus)
- E307231
Classifications
- ETIM 6.0
- EC002635
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
