Weidmuller 1233320000 SAIE-M12B-5-2.0V-HW-PG9
- MPN: 1233320000
- PPN: WDM-1233320000
CAD
$17.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

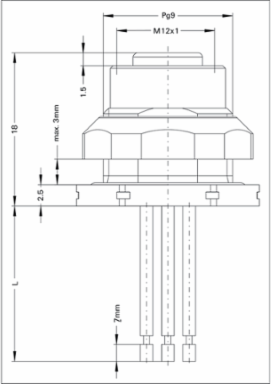

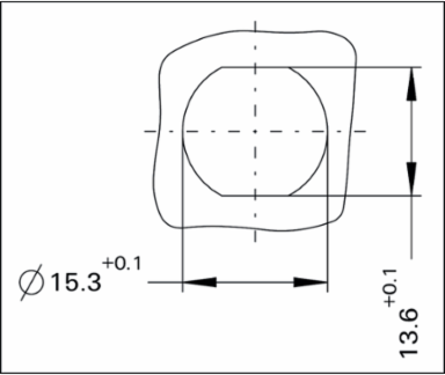

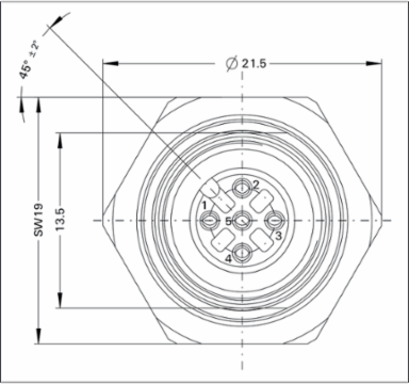

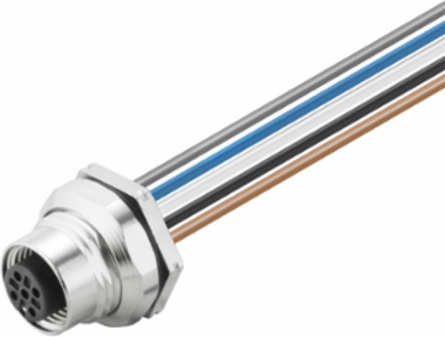

Built-in plugs, M12, Female socket, straight, PG 9, Number of poles: 5, 2 m, Rear panel mounting
Documentation & Downloads
Specifications
General Data
| Cable glands | PG 9 |
|---|---|
| Coding | A |
| Conductor O.D., max. | 1.7 mm |
| Connection thread | M12 |
| Core cross-section | 0.34 mm² |

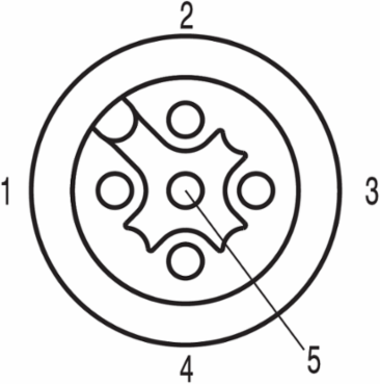

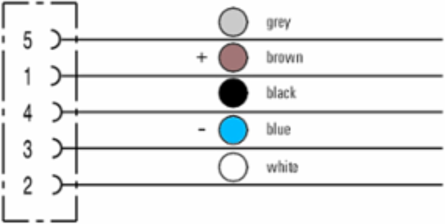

| Number of poles | 5 |
| Protection degree | IP67, when screwed in |
| Rated voltage | 60 V |
| Temperature range of housing | -30…+90 °C |
| Cable length | 2 m |
|---|---|
| Conductor O.D. | 1.5 - 1.7mm |
| Conductor O.D., min. | 1.5 mm |
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast |
| Pollution severity | 3 |
| Rated current | 4 A |
| Strand / cable length | 2 m |
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 76 g |
|---|
Standards
| Connector standard | IEC 61076-2-101 |
|---|---|
| Certificate no. (cULus) | E307231 |
| Certificate No. (cURus) | E307231 |
|---|
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
