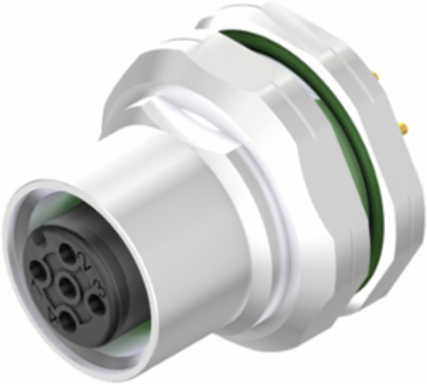

Weidmuller 2422040000 SAIE-M12B-8-H5.5TL-PG9
- MPN: 2422040000
- PPN: WDM-2422040000
CAD
$15.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

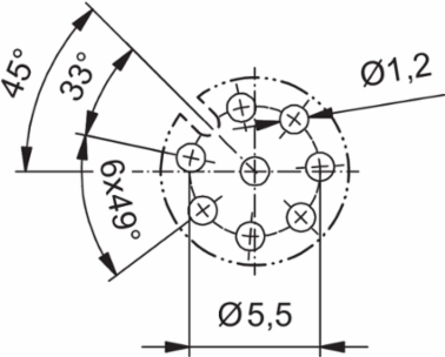

Built-in plugs, M12, PG 9, Number of poles: 8, Rear panel mounting
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|

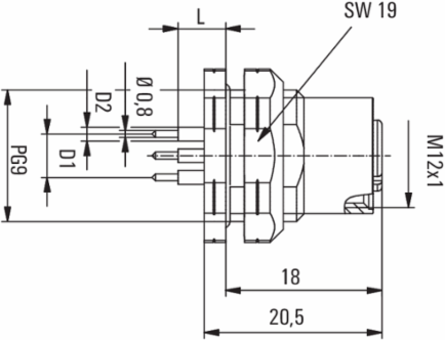

Dimensions And Weights
| Net weight | 20 g |
|---|
Technical Data Of Pcb Plug-In Connector

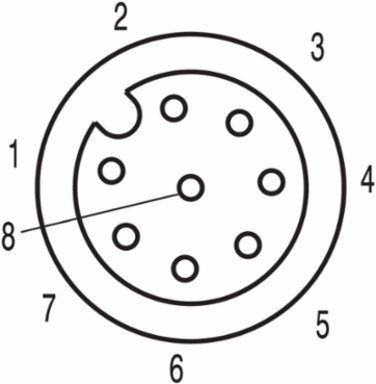

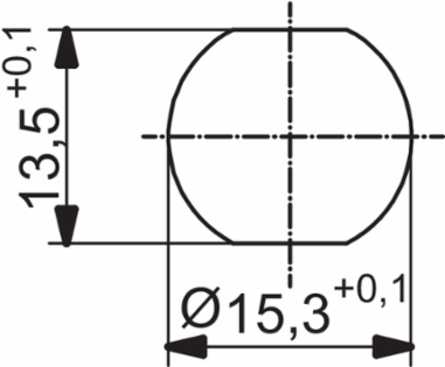

| Coding | A |
|---|---|
| Mounting height | 5.5 mm |
| Number of poles | 8 |
| Type of mounting | Rear panel mounting |
| Rated voltage (text) | 250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole) |
| Temperature range | -30…80 °C |
| Contact surface | Au (Gold) |
| Connection thread | M12 |
| Mounting torque range | 1.2 Nm |
| Pollution severity | 3 (2 within the sealed area) |
| Contact material | CuZn |
| Material of the flange-mounted housing | Nickel-plated CuZn |
| Housings | M12 socket |
|---|---|
| Mounting thread | PG 9 |
| Shield connection | No |
| Rated voltage | 30 V |
| Rated current | 4 A (4- and 5-pole) / 2 A (8-pole) |
| Protection degree | IP67 |
| Housing main material | CuZn, nickel-plated |
| Tightening torque | M12: 0.8 Nm |
| Insulation strength | 100 MΩ |
| Plugging cycles | ≥ 100 |
| Lock nut material | Nickel-plated CuZn |
Material Data
| Contact material | CuZn |
|---|
| Contact surface | Au (Gold) |
|---|
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
System Parameters
| Insulation strength | 100 MΩ |
|---|---|
| Pin series quantity | 1 |
| Protection degree | IP67 |
| Number of poles | 8 |
|---|---|
| Plugging cycles | ≥ 100 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
