Weidmuller

Weidmuller 2424270000 SAIE-M12S-5A-FV-20-LK

  • MPN: 2424270000
  • PPN: WDM-2424270000

CAD

$18.10

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

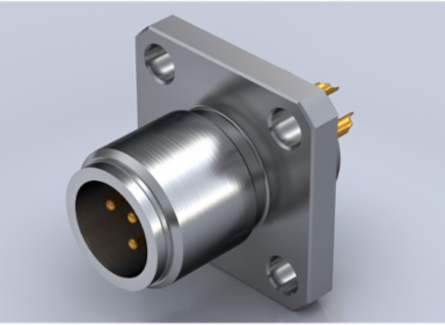

Built-in plugs, M12, M 12, Number of poles: 5, Front mounting

Documentation & Downloads

Specifications

Approvals

ROHSConform

Dimensions And Weights

Net weight18.5 g

Technical Data Of Pcb Plug-In Connector

CodingA
HousingsM12 pin
Shield connectionNo
Rated voltage60 V
Rated current4 A
Protection degreeIP67
Housing main materialCuZn, nickel-plated
Tightening torqueM12: 0.8 Nm
Pollution severity3 (2 within the sealed area)
Contact materialCuZn
Material of the flange-mounted housingNickel-plated CuZn
Housing surfacenickel-plated
Number of poles5
Type of mountingFront mounting
Rated voltage (text)250 V (4-pole) / 60 V (5-pole)
Temperature range-30…80 °C
Contact surfaceAu (Gold)
Connection threadM12
Insulation strength100 MΩ
Plugging cycles≥ 100
Lock nut materialNickel-plated CuZn

Material Data

Contact materialCuZn
Contact surfaceAu (Gold)

Classifications

ETIM 6.0EC002635
eClass 9.027-44-01-02
eClass 10.027-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03

System Parameters

Insulation strength100 MΩ
Pin series quantity1
Protection degreeIP67
Number of poles5
Plugging cycles≥ 100

Environmental Product Compliance

REACH SVHCLead 7439-92-1

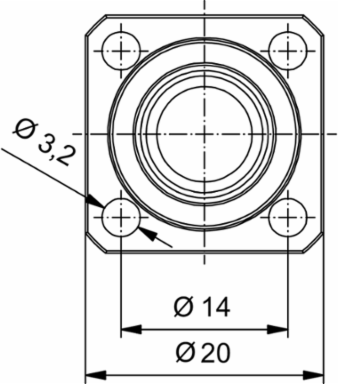

SAIE-M12S-5A-FV-20-LK

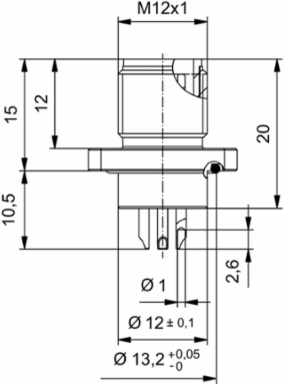

SAIE-M12S-5A-FV-20-LK

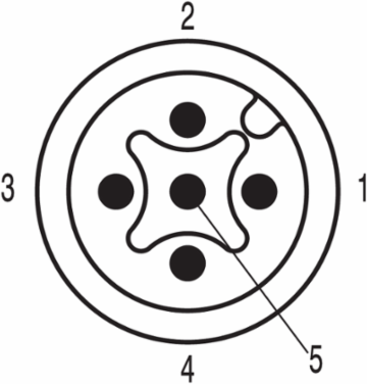

SAIE-M12S-5A-FV-20-LK
SAIE-M12S-5A-FV-20-LK
