Weidmuller 2423150000 SAIE-M12S-5S-F5.5TL
- MPN: 2423150000
- PPN: WDM-2423150000
CAD
$8.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

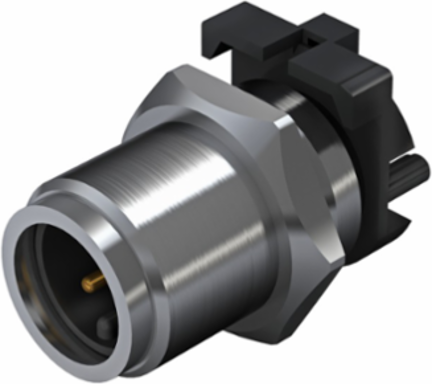

Built-in plugs, M12, M 12, Number of poles: 5, Front mounting
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 10 g
Technical Data Of Pcb Plug-In Connector
- Coding
- A
- Housings
- M12 pin
- Mounting thread
- M 12
- Shield connection
- Yes
- Rated voltage
- 60 V
- Rated current
- 4 A
- Protection degree
- IP67
- Housing main material
- CuZn, nickel-plated
- Tightening torque
- M12: 0.8 Nm
- Insulation strength
- 100 MΩ
- Plugging cycles
- ≥ 100
- Lock nut material
- Nickel-plated CuZn
Housing surfacenickel-plated

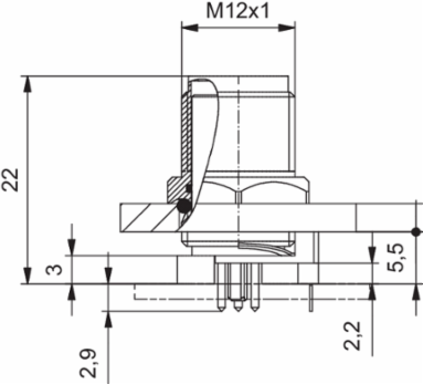

Mounting height5.5 mm
Number of poles5
Type of mountingFront mounting
Rated voltage (text)250 V (4-pole) / 60 V (5-pole)
Temperature range-30…80 °C
Contact surfaceAu (Gold)
Connection threadM12
Mounting torque range1.2 Nm
Pollution severity3 (2 within the sealed area)
Contact materialCuZn
Material of the flange-mounted housingNickel-plated CuZn
Material Data
- Contact material
- CuZn
Contact surfaceAu (Gold)
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Insulation strength
- 100 MΩ
- Pin series quantity
- 1
- Protection degree
- IP67
Number of poles5
Plugging cycles≥ 100
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
