Weidmuller 1861110000 SAIE-M12S-8-0.5U-M16
- MPN: 1861110000
- PPN: WDM-1861110000
CAD
$18.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

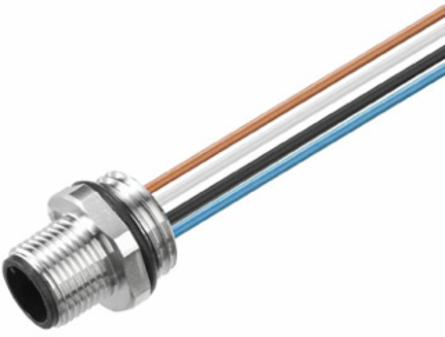

Built-in plugs, M12, pin, straight, M 16, Number of poles: 8, 0.5 m, Front mounting
Documentation & Downloads
Specifications
General Data
- Cable glands
- M 16
- Coding
- A
- Contact surface
- Gold-plated
- Housing main material
- Brass, nickel-plated

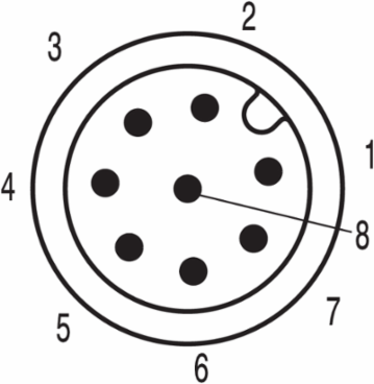

- Number of poles
- 8
- Protection degree
- IP67, when screwed in
- Rated voltage
- 30 V
- Strand / cable length
- 0.5 m
Cable length0.5 m
Connection threadM12
Core cross-section0.25 mm²
MaterialPUR
Plugging cycles≥ 100
Rated current4 A (4- and 5-pole)/ 2 A (8-pole)/ 1.5 A (12-pole)
Rated voltage (text)250 V (4-pole)/ 60 V (5-pole)/ 30 V (8 and 12-pole)
Temperature range of housing-30…+90 °C
Approvals
- Approvals
- CULUS
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 29 g
Standards
- Connector standard
- IEC 61076-2-101
- Certificate no. (cULus)
- E307231
Certificate No. (cURus)E307231
Classifications
- ETIM 6.0
- EC002635
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
UNSPSC30-21-18-10
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 85 °C
- Operating temperature, max.
- 85 °C
Operating temperature range, min.-25 °C
Operating temperature, min.-25 °C
