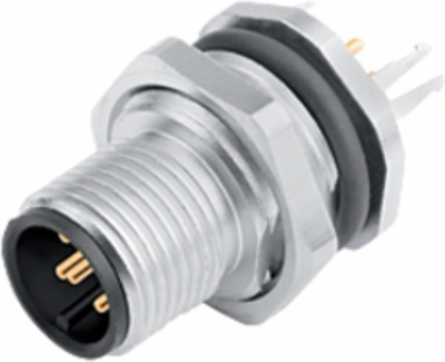

Weidmuller 1467730000 SAIE-M12S-8S-TL-HW-PG9
- MPN: 1467730000
- PPN: WDM-1467730000
CAD
$21.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, M12, PG 9, Number of poles: 8
Documentation & Downloads
Specifications
General Data
| Cable glands | PG 9 |
|---|---|
| Connection thread | M12 |
| Housing main material | Zinc diecast |
| Protection degree | IP67, when fully mounted |
| Rated voltage | 60 V |
| Temperature range of housing | -40 … +85 ° C |
| Coding | A |
|---|---|
| Contact surface | Gold-plated |

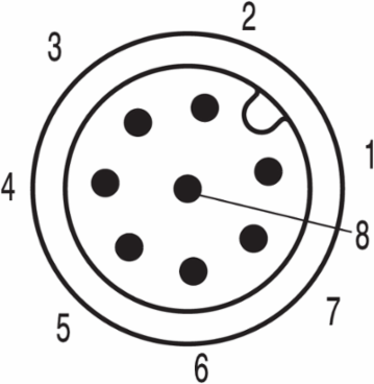

| Number of poles | 8 |
| Rated current | 4 A (4- and 5-pole)/ 2 A (8-pole)/ 1.5 A (12-pole) |
| Rated voltage (text) | 250 V (4-pole)/ 60 V (5-pole)/ 30 V (8 and 12-pole) |
| Type of connection | Pin |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 35.05 g |
|---|
Standards
| Connector standard | IEC 61076-2-101 |
|---|
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
