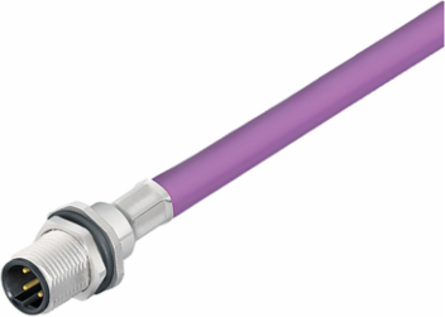

Weidmuller 1279490200 SAIE-M12S-PB-2.0U HW
- MPN: 1279490200
- PPN: WDM-1279490200
CAD
$39.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, M12, PG 9, Number of poles: 2
Documentation & Downloads
Specifications
General Data
| Cable glands | PG 9 |
|---|---|
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast, nickel-plated |
| Number of poles | 2 |
| Protection degree | IP68 |
| Rated voltage | 250 V |
| Strand / cable length | 2 m |
| Type of connection | Pin |
| Connection thread | M12 |
|---|---|
| Core cross-section | 0.25 mm² |
| Material | PUR halogen-free |
| Plugging cycles | ≥ 100 |
| Rated current | 4 A |
| Sheathing colour | violet (similar to RAL 4001) |
| Temperature range of housing | -20 … +60 °C |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 142 g |
|---|
Classifications
| ETIM 6.0 | EC002635 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
