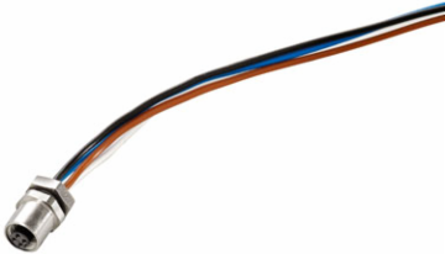

Weidmuller 1873060000 SAIE-M5B-3-0.2U
- MPN: 1873060000
- PPN: WDM-1873060000
CAD
$13.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, M5, Female socket, straight, M 5, Number of poles: 3
Documentation & Downloads
Specifications
General Data
| Cable glands | M 5 |
|---|---|
| Contact surface | Gold-plated |
| Housing main material | Brass, nickel-plated |
| Number of poles | 3 |
| Protection degree | IP67, when screwed in |
| Rated voltage | 60 V |
| Strand / cable length | 0.2 m |
| Type of connection | Socket connector |
| Connection thread | M5 |
|---|---|
| Core cross-section | 0.14 mm² |
| Material | PVC |
| Plugging cycles | ≥ 500 |
| Rated current | 1 A |
| Rated voltage (text) | 60 V |
| Temperature range of housing | -25…+80 °C |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 5 g |
|---|
Classifications
| ETIM 6.0 | EC002635 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
| UNSPSC | 30-21-18-10 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature range, max. | 80 °C |
|---|---|
| Operating temperature, max. | 80 °C |
| Operating temperature range, min. | -25 °C |
|---|---|
| Operating temperature, min. | -25 °C |
