Weidmuller 2020870000 SAIE-M8B-3-1.5U-FP-M8
- MPN: 2020870000
- PPN: WDM-2020870000
CAD
$15.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

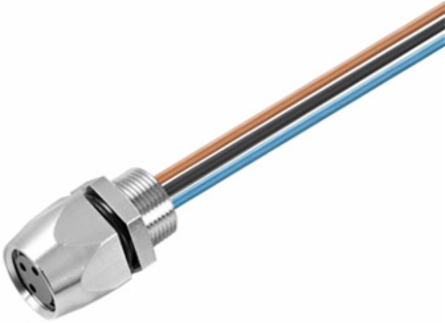

Built-in plugs, M8 thread, Female socket, straight, M 8, Number of poles: 3, 1.5 m
Documentation & Downloads
Specifications
General Data
- Cable glands
- M 8
- Coding
- none
- Contact surface
- Gold-plated

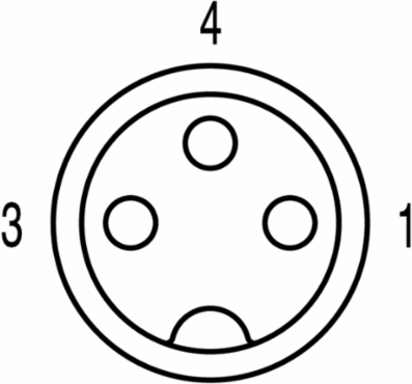

- Number of poles
- 3
- Protection degree
- IP67, when screwed in
- Type of connection
- Socket connector
Cable length1.5 m
Connection threadM8 thread
Housing main materialBrass, nickel-plated
Plugging cycles≥ 100
Strand / cable length1.5 m
Approvals
- Approvals
- CULUS
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 26.8 g
Standards
- Connector standard
- IEC 61076-2-104
Certificate no. (cULus)E307231
Classifications
- ETIM 6.0
- EC002635
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
