Weidmuller 1861280000 SAIE-M8R-3-0.5U-FP-M8
- MPN: 1861280000
- PPN: WDM-1861280000
CAD
$14.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

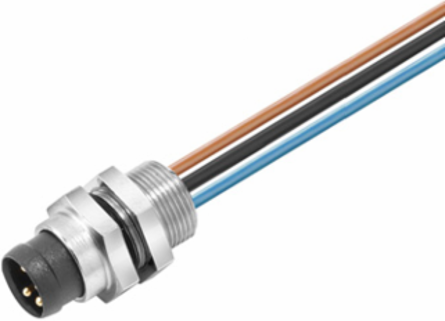

Built-in plugs, M8 snap, pin, straight, M 8, Number of poles: 3
Documentation & Downloads
Specifications
General Data
- Cable glands
- M 8
- Contact surface
- Gold-plated
- Housing main material
- Brass, nickel-plated

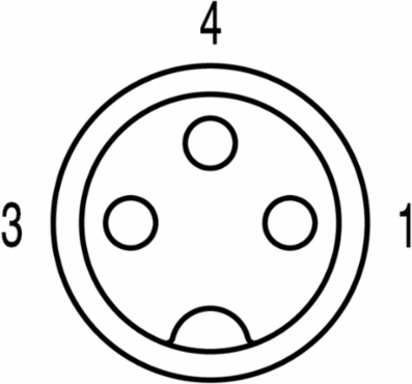

- Number of poles
- 3
- Protection degree
- IP67, when screwed in
- Rated voltage
- 60 V
- Strand / cable length
- 0.5 m
- Type of connection
- Pin
Connection threadM8 snap
Core cross-section0.25 mm²
MaterialPVC
Plugging cycles≥ 100
Rated current4 A
Rated voltage (text)60 V (3-pole) / 30 V (4-pole)
Temperature range of housing-30…+90 °C
Approvals
- Approvals
- CULUS
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 12 g
Standards
- Certificate No. (cURus)
- E307231
Certificate no. (cULus)E307231
Classifications
- ETIM 6.0
- EC002635
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
UNSPSC30-21-18-10
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 90 °C
- Operating temperature, max.
- 90 °C
Operating temperature range, min.-30 °C
Operating temperature, min.-30 °C
