Weidmuller 1856140000 SAIE-M8B-4-0.5U-FP-M8
- MPN: 1856140000
- PPN: WDM-1856140000
CAD
$14.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

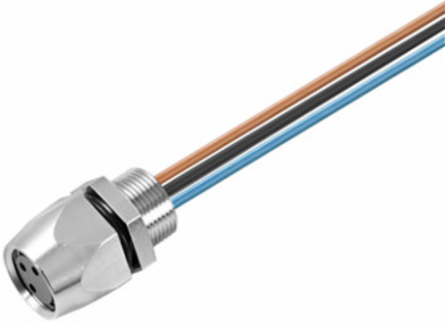

Built-in plugs, M8 thread, Female socket, straight, M 8, Number of poles: 4
Documentation & Downloads
Specifications
General Data
| Cable glands | M 8 |
|---|---|
| Connection thread | M8 thread |
| Core cross-section | 0.25 mm² |
| Material | PVC |
| Plugging cycles | ≥ 100 |
| Rated current | 4 A |
| Rated voltage (text) | 60 V (3-pole) / 30 V (4-pole) |
| Temperature range of housing | -30…+90 °C |
| Coding | none |
|---|---|
| Contact surface | Gold-plated |
| Housing main material | Brass, nickel-plated |

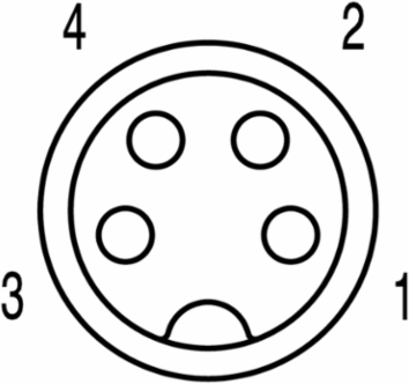

| Number of poles | 4 |
| Protection degree | IP67, when screwed in |
| Rated voltage | 30 V |
| Strand / cable length | 0.5 m |
| Type of connection | Socket connector |
Approvals
| Approvals | CULUS, EAC |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 15 g |
|---|
Standards
| Connector standard | IEC 61076-2-104 |
|---|
| Certificate no. (cULus) | E307231 |
|---|
Classifications
| ETIM 6.0 | EC002635 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
| UNSPSC | 30-21-18-10 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature range, max. | 90 °C |
|---|---|
| Operating temperature, max. | 90 °C |
| Operating temperature range, min. | -30 °C |
|---|---|
| Operating temperature, min. | -30 °C |
