Weidmuller 1078720000 SAIE-M8S-4-0.5U-FP-M8
- MPN: 1078720000
- PPN: WDM-1078720000
CAD
$13.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

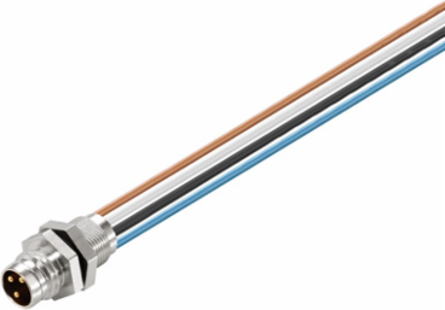

Built-in plugs, M8 thread, pin, straight, M 8, Number of poles: 4
Documentation & Downloads
Specifications
General Data
- Cable glands
- M 8
- Connection thread
- M8 thread
- Core cross-section
- 0.25 mm²
- Material
- PVC
- Plugging cycles
- ≥ 100
- Rated current
- 4 A
- Rated voltage (text)
- 60 V (3-pole) / 30 V (4-pole)
- Temperature range of housing
- -30…+90 °C
Codingnone
Contact surfaceGold-plated
Housing main materialBrass, nickel-plated

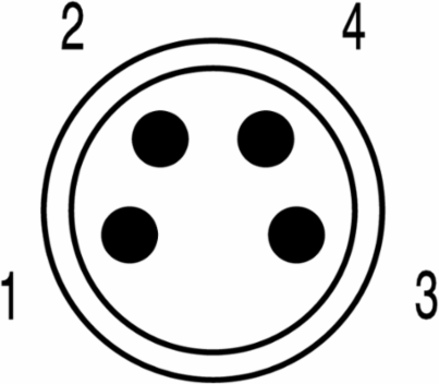

Number of poles4
Protection degreeIP67, when screwed in
Rated voltage30 V
Strand / cable length0.5 m
Type of connectionPin
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 12 g
Standards
- Connector standard
- IEC 61076-2-104
Classifications
- ETIM 6.0
- EC002635
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 90 °C
- Operating temperature, max.
- 90 °C
Operating temperature range, min.-30 °C
Operating temperature, min.-30 °C
