Weidmuller 2423920000 SAIFG-M14X1-B-1
- MPN: 2423920000
- PPN: WDM-2423920000
CAD
$4.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

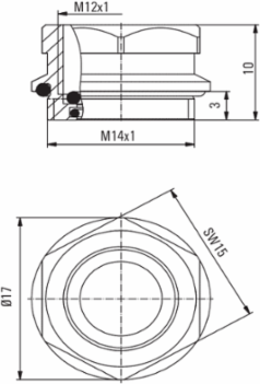

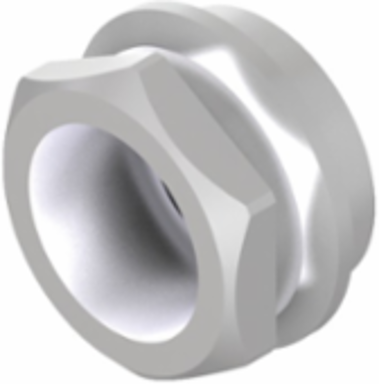

Built-in plug housing, M12 socket, Mounting height: 9 mm
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 7.08 g |
|---|
Technical Data Of Pcb Plug-In Connector
| Coding | none |
|---|---|
| Housings | M12 socket |
| Housing main material | CuZn |
| Mounting thread | M 14 |
| Housing surface | nickel-plated |
|---|---|
| Mounting height | 9 mm |
| Connection thread | M12 |
| Seal material | FKM |
Classifications
| ETIM 6.0 | EC000437 |
|---|---|
| eClass 9.1 | 27-44-02-02 |
| ETIM 7.0 | EC000437 |
|---|---|
| eClass 10.0 | 27-44-02-24 |
System Parameters
| Pin series quantity | 1 |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
