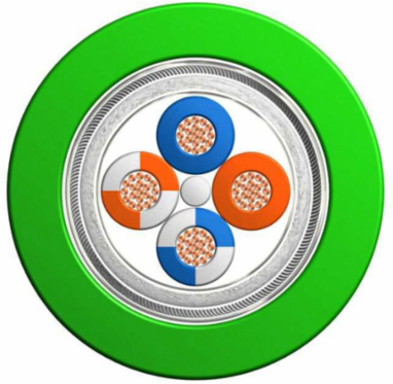

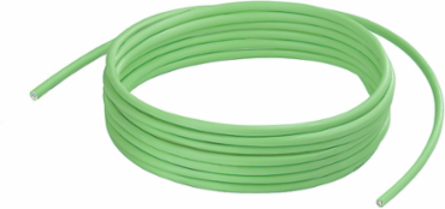

Weidmuller 1327090000 SAIH-ETHERCAT-4X0.15PUR
- MPN: 1327090000
- PPN: WDM-1327090000
CAD
$533.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Bus line, Number of poles: 4, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Documentation & Downloads
Specifications
Technical Specifications For Cable
| Number of poles | 4 |
|---|---|
| Outside diameter | 4.8 ± 0.3 mm |
| Insulation | PP |
| Sheath material | PUR |
| Halogen | No |
| Outer cladding in accordance with UL AWM style | 20963 (80 °C / 30 V) |
| Bending radius, min., stationary | 4 x cable diameter |
| Acceleration | 5 m/s² |
| Bending cycles | 5 Mio |
| Hybrid cable | No |
| Configurable cable length | No |
| Core cross-section | 0.15 mm² |
|---|---|
| Shielded | Yes |
| Colour coding | blue, orange, white / blue, white / orange |
| Sheathing colour | green |
| Temperature range, stationary | -40...80 °C |
| Suitable for cable carriers | Yes |
| Bending radius, min., moving | 7.5 x cable diameter |
| Speed | 180 m/min |
| Resistant to welding beads | No |
| Irradiation crosslinked | No |
Classifications
| ETIM 6.0 | EC000830 |
|---|---|
| eClass 9.0 | 27-06-18-05 |
| eClass 10.0 | 27-06-18-01 |
| ETIM 7.0 | EC003249 |
|---|---|
| eClass 9.1 | 27-06-90-90 |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 3,098 g |
|---|
