Weidmuller 8813210000 IE-5TC4x2xAWG26/7-PUR
- MPN: 8813210000
- PPN: WDM-8813210000
CAD
$695.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

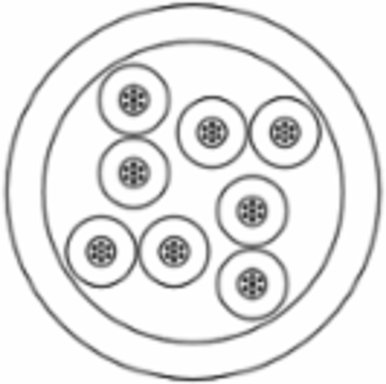

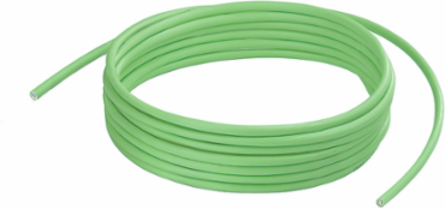

Dragline cable, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 100 m
Documentation & Downloads
Specifications
Electrical Properties
| Insulation strength | 500,000 Ω |
|---|
| Operating voltage | 100 V |
|---|
Cable Structure
| Wire material | Stranded tin-plated copper wire |
|---|---|
| Strands | 7 |
| Insulation cross-section | 0.95 mm |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires - wire pairs | white/blue - blue, white/orange - orange, white/green - green, white/brown - brown |
| Shielding | SF/UTP |
| Shielding braid thickness | 0.1 mm |
| Material sheath | PUR |
| Sheath diameter, max. | 6.8 mm |
| Sheathing colour | green (RAL 6018) |
| Standard designations | LI9Y(ST)C11Y 4X2X0.14 VZN GN, SF/UTP |
|---|---|
| Cross-section | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Wire core insulation thickness | 0.23 mm |
| Diameter of wire pair | 1.9 mm |
| Filler | As central element, Between the individual wire pairs |
| Complete shielding | Plastic foil, Aluminium foil, Shielding braid made from copper wiring |
| Overlap of shielding braid | 90 % |
| Sheath diameter, min. | 6.3 mm |
| Sheathing material thickness | 0.85 mm |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 4 x cable diameter |
|---|---|
| Bending cycles | 5 Mio |
| Speed | 180 m/min |
| Torsion resistance | 30 °/m |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| UV-resistant | Yes |
| Halogen | halogen-free, according to IEC 60754-2 |
| Fire propagation | No |
| Min. bending radius, repetitive | 7.5 x cable diameter |
|---|---|
| Pulling force | ≤ 100 N |
| Acceleration | 5 m/s² |
| Abrasion resistance | very good |
| Resistance to oils | in accordance with IEC 60811-2-1 |
| Silicone-free | Yes |
| Impervious to smoke | According to IEC 61034-2 |
Dimensions And Weights
| Length | 100 m |
|---|---|
| Net weight | 5,610 g |
| Length (inches) | 3.937 inch |
|---|---|
| Insulation cross-section | 0.95 mm |
Standards
| Impervious to smoke | According to IEC 61034-2 |
|---|---|
| Standard, insulating material | DIN EN 50290-2-25 (HD 624.5) |
| Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
| Standard, assembly | UL-Style 20963 (80°C/30V) |
|---|---|
| Standard, wire material | DIN EN 13602 Cu-ETP-A |
Classifications
| ETIM 6.0 | EC000830 |
|---|---|
| eClass 9.0 | 27-06-18-05 |
| eClass 10.0 | 27-06-18-01 |
| ETIM 7.0 | EC003249 |
|---|---|
| eClass 9.1 | 27-06-90-90 |
| UNSPSC | 26-12-16-06 |
Electrical Properties Of Cable
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
|---|---|
| Operating voltage (UL rating) | 30 V undefined |
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Deviation | 40 ns/100m |
| Transfer impedance | 100 mΩ/m at 10 MHz |
| Capacity at 800 Hz | 50 nF/km |
| Speed | 180 m/min |
| Operating voltage | 100 V |
|---|---|
| Test voltage: wire-wire-shield | 700 Vrms, 50 Hz, 1 min |
| Loop resistance | 270 Ω/km |
| Resistance differential | 2 % |
| Insulation strength | 500,000 Ω |
| Signal propagation time | 5.55 ns/m |
Temperatures
| Operating temperature, max. | 80 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -40 °C...80 °C |
| Installation temperature | -20 °C...60 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
