Weidmuller 1292201000 SAIL-7/8BW-5-10U
- MPN: 1292201000
- PPN: WDM-1292201000
CAD
$122.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

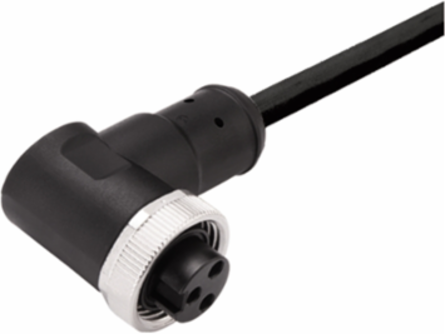

Sensor/actuator line, One end without connector, 7/8", Number of poles : 5 (4 + PE), 10 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 600 g
General Technical Data
- Version
- Socket, angled
- Housing main material
- PUR
- Coding
- none
- Contact surface
- Au (Gold)
- Rated voltage
- 300 V
- Insulation strength
- 108 Ω
- Plugging cycles
- ≥ 100
- jumpered
- No
Connection thread7/8"
Threaded ring materialDiecast zinc
Protection degreeIP68, when screwed in
LEDNo
Rated current9 A
Temperature range of housing-25…+80 °C
Pollution severity3
Technical Specifications For Cable

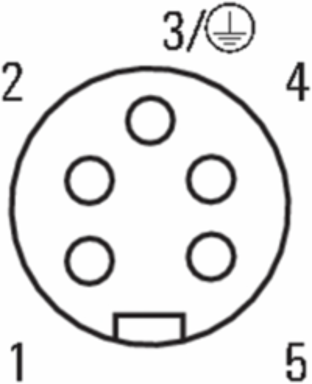

- Number of poles
- 5 (4 + PE)
- Outside diameter
- 8.7 ± 0.2 mm
- Shielded
- No

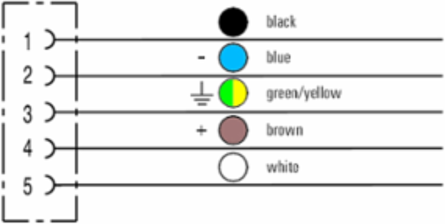

- Colour coding
- brown, white, blue, black, Green/yellow
- Sheathing colour
- black
- Temperature range, moving
- -20...80 °C
- Outer cladding in accordance with UL AWM style
- 20234 (80 °C / 1000 V)
- Torsion resistance
- 0 °/m
- Resistant to welding beads
- No
Core cross-section1.5 mm²
Cable length10 m
InsulationTPM
Sheath materialPUR
HalogenNo
Temperature range, stationary-50...80 °C
Suitable for cable carriersNo
Bending radius, min., moving7.5 x cable diameter
Configurable cable lengthNo
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-11
- eClass 10.0
- 27-06-03-11
ETIM 7.0EC001855
eClass 9.127-06-03-11
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
