Weidmuller 2519460500 SAIL-7/8W7/8W-5-5.0U
- MPN: 2519460500
- PPN: WDM-2519460500
CAD
$113.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

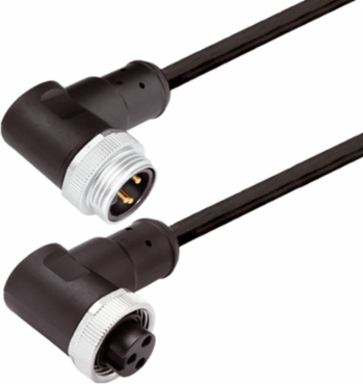

Sensor/actuator line, 7/8", Number of poles : 5 (4 + PE), 5 m, pin, 90° - socket 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 400 g |
|---|
General Technical Data

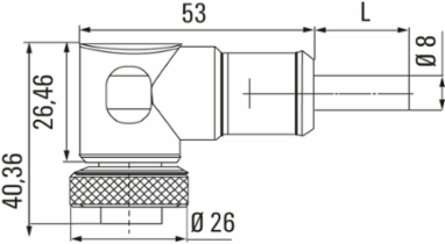

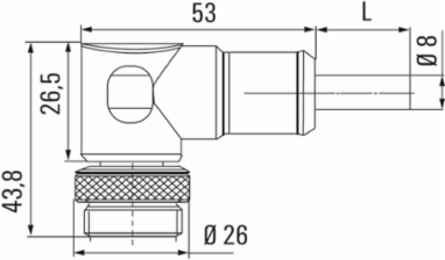

| Version | pin, 90° - socket 90° |
|---|---|
| Housing main material | PUR |
| Coding | none |
| Contact surface | Au (Gold) |
| Rated voltage | 300 V |
| Insulation strength | 108 Ω |
| Tightening torque | 7/8": 1.5 Nm |
| Pollution severity | 3 |
| Connection thread | 7/8" |
|---|---|
| Threaded ring material | Diecast zinc |
| Protection degree | IP68, when screwed in |
| LED | No |
| Rated current | 9 A |
| Temperature range of housing | -25…+80 °C |
| Plugging cycles | ≥ 100 |
| jumpered | No |
Technical Specifications For Cable

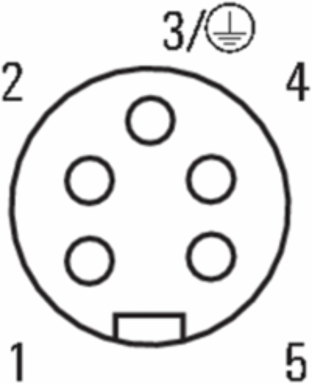

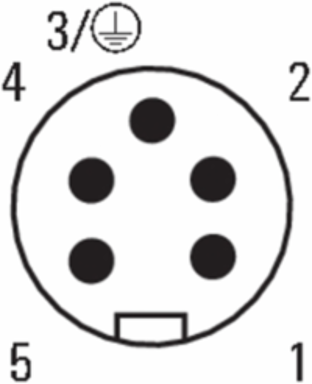

| Number of poles | 5 (4 + PE) |
|---|---|
| Outside diameter | 8.7 ± 0.2 mm |
| Shielded | No |

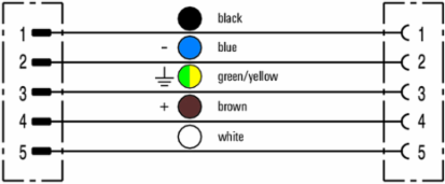

| Colour coding | brown, white, blue, black, Green/yellow |
| Sheathing colour | black |
| Temperature range, moving | -20...80 °C |
| Outer cladding in accordance with UL AWM style | 20234 (80 °C / 1000 V) |
| Torsion resistance | 0 °/m |
| Resistant to welding beads | No |
| Core cross-section | 1.5 mm² |
|---|---|
| Cable length | 5 m |
| Insulation | TPM |
| Sheath material | PUR |
| Halogen | No |
| Temperature range, stationary | -50...80 °C |
| Suitable for cable carriers | No |
| Bending radius, min., moving | 7.5 x cable diameter |
| Configurable cable length | No |
Classifications
| ETIM 6.0 | EC001855 |
|---|---|
| eClass 9.0 | 27-06-03-11 |
| eClass 10.0 | 27-06-03-11 |
| ETIM 7.0 | EC001855 |
|---|---|
| eClass 9.1 | 27-06-03-11 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
