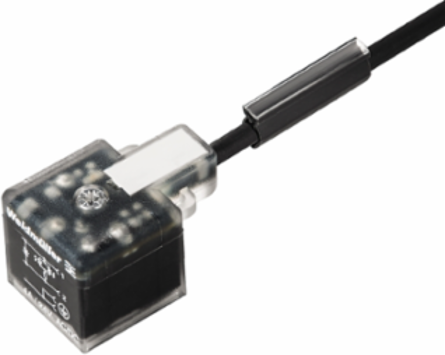

Weidmuller 9457711100 SAIL-VSA-11U
- MPN: 9457711100
- PPN: WDM-9457711100
CAD
$28.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Valve plug, One end without connector - valve plug
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 45 g |
|---|
General Technical Data
| Version | One end without connector - valve plug |
|---|---|
| Protection degree | IP67, when screwed in |
| LED | Yes |
| Rated current | 4 A |
| All valve plugs are fitted with protective circuits | Zener diode |
| Coding | Design A (18 mm) |
|---|---|
| Contact surface | tinned |
| Rated voltage | 24 V |
| Temperature range of housing | -25…+80 °C |
Technical Specifications For Cable
| Number of poles | 3 |
|---|---|
| Outside diameter | 4.6 ± 0.2 mm |
| Shielded | No |
| Colour coding | brown, blue, Green/yellow |
| Sheathing colour | black |
| Temperature range, moving | -25...80 °C |
| Suitable for cable carriers | Yes |
| Bending radius, min., stationary | 5 x cable diameter |
| Acceleration | 5 m/s² |
| Bending cycles | 2 Mio |
| Core cross-section | 0.5 mm² |
|---|---|
| Cable length | 11 m |
| Insulation | PP |
| Sheath material | PUR |
| Halogen | No |
| Temperature range, stationary | -50...80 °C |
| Torsion resistance | 0 °/m |
| Bending radius, min., moving | 10 x cable diameter |
| Speed | 200 m/min |
| Resistant to welding beads | No |
Classifications
| ETIM 6.0 | EC001855 |
|---|---|
| eClass 9.0 | 27-06-03-12 |
| eClass 10.0 | 27-06-03-12 |
| ETIM 7.0 | EC001855 |
|---|---|
| eClass 9.1 | 27-06-03-11 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
