Weidmuller 9457710800 SAIL-VSA-8.0U
- MPN: 9457710800
- PPN: WDM-9457710800
CAD
$24.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

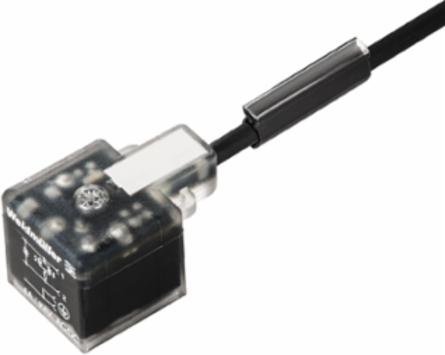

Valve plug, One end without connector - valve plug
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 277 g
General Technical Data
- Version
- One end without connector - valve plug
- Protection degree
- IP67, when screwed in
- LED
- Yes
- Rated current
- 4 A
- Tightening torque
- Mounting screw M3: 0.4 Nm

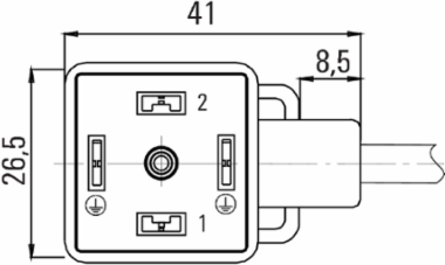

CodingDesign A (18 mm)
Contact surfacetinned
Rated voltage24 V
Temperature range of housing-25…+80 °C

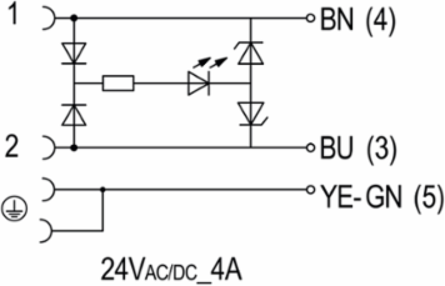

All valve plugs are fitted with protective circuitsZener diode
Technical Specifications For Cable
- Number of poles
- 3
- Outside diameter
- 4.6 ± 0.2 mm
- Shielded
- No
- Colour coding
- brown, blue, Green/yellow
- Sheathing colour
- black
- Temperature range, moving
- -25...80 °C
- Suitable for cable carriers
- Yes
- Bending radius, min., stationary
- 5 x cable diameter
- Acceleration
- 5 m/s²
- Bending cycles
- 2 Mio
Core cross-section0.5 mm²
Cable length8 m
InsulationPP
Sheath materialPUR
HalogenNo
Temperature range, stationary-50...80 °C
Torsion resistance0 °/m
Bending radius, min., moving10 x cable diameter
Speed200 m/min
Resistant to welding beadsNo
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-12
- eClass 10.0
- 27-06-03-12
ETIM 7.0EC001855
eClass 9.127-06-03-11
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
