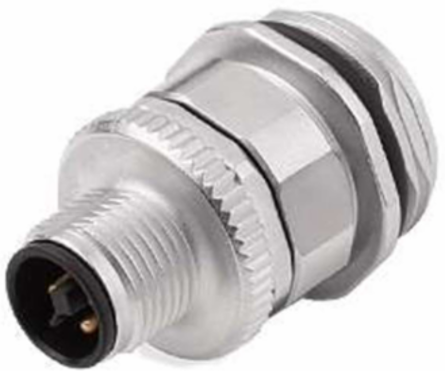

Weidmuller 1392710000 SAIS-WDF-4-M20-T-COD
- MPN: 1392710000
- PPN: WDM-1392710000
CAD
$21.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Panel feed-through, Number of poles: 4, Coding: T, M12, 60 V
Documentation & Downloads
Specifications
General Data
| Cable glands | M 20 |
|---|---|
| Conductor cross-section, max. | 1.5 mm² |
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Insulation strength | 108 Ω |
| Plugging cycles | ≥ 100 |
| Protection degree | IP67 |
| Rated voltage | 60 V |
| Shield connection | No |
| Type of connection | Screw connection |
| Coding | T |
|---|---|
| Conductor cross-section, min. | 0.14 mm² |
| Contact material | CuZn |
| Housing main material | Zinc diecast |

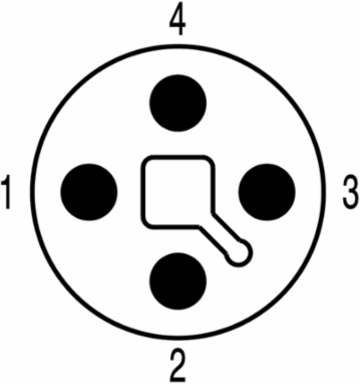

| Number of poles | 4 |
| Pollution severity | 3 |
| Rated current | 12 A |
| Rated voltage (text) | 60 V |
| Temperature range of housing | -40 … +85 ° C |
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 28 g |
|---|
Standards
| Certificate No. (cURus) | E307231 |
|---|
Classifications
| ETIM 6.0 | EC002925 |
|---|---|
| eClass 9.0 | 27-44-01-06 |
| eClass 10.0 | 27-44-01-06 |
| ETIM 7.0 | EC002925 |
|---|---|
| eClass 9.1 | 27-44-01-06 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
