Weidmuller 0170620000 SAKG 46 II
- MPN: 0170620000
- PPN: WDM-0170620000
CAD
$170.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

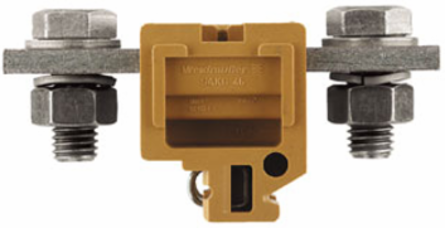

SAK Series, Feed-through terminal, Rated cross-section: 150 mm², Threaded stud connection, medium yellow, Direct mounting
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CSA, CURUSEX, EAC, GERMLLOYD, MARITREG, UR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 46 mm |
|---|---|
| Height | 106 mm |
| Depth | 57 mm |
| Weight | 372.2 g |
| Width (inches) | 1.811 inch |
|---|---|
| Height (inches) | 4.173 inch |
| Depth (inches) | 2.244 inch |
| Net weight | 351.2 g |
Csa Rating Data
| Certificate No. (CSA) | 12400-199 |
|---|---|
| Voltage size C (CSA) | 600 V |
| Current size C (CSA) | 365 A |
|---|---|
| Wire cross section max. (CSA) | 300 kcmil |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Number of similar terminals | 1 |
| Type of mounting | Snap-on |
| Installation advice | Direct mounting |
|---|---|
| Open sides | Open |
Material Data
| Material | KrG |
|---|---|
| UL 94 flammability rating | V-0, 5VA |
| Colour | medium yellow |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
| UNSPSC | 30-21-18-11 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Specifications
| Version | Stud terminal |
|---|---|
| Number of potentials | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 32 |
| PE function | No |
| End cover plate required | Yes |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated cross-section | 150 mm² |
|---|---|
| Rated current | 309 A |
| Standards | IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 9.89 W |
| Pollution severity | 3 |
| Rated voltage | 1,000 V |
|---|---|
| Current at maximum wires | 353 A |
| Volume resistance according to IEC 60947-7-x | 0.1 mΩ |
| Rated impulse withstand voltage | 8 kV |
Conductors For Clamping (Rated Connection)
| Cable lug to DIN 46234 | 10...185 mm² |
|---|---|
| Clamping range, max. | 185 mm² |
| Clamping screw | M 12 |
| Number of connections | 2 |
| Tightening torque, min. | 14 Nm |
| Cable lug to DIN 46235 | 25 - 150 mm² |
|---|---|
| Clamping range, min. | 10 mm² |
| Connection direction | on side |
| Tightening torque, max. | 31 Nm |
| Type of connection | Threaded stud connection |
Ul Rating Data
| Certificate No. (UR) | E60693 |
|---|---|
| Conductor size Factory wiring min. (UR) | 0000 AWG |
| Conductor size Field wiring min. (UR) | 0000 AWG |
| Voltage size C (UR) | 600 V |
| Conductor size Factory wiring max. (UR) | 300 kcmil |
|---|---|
| Conductor size Field wiring max. (UR) | 300 kcmil |
| Current size C (UR) | 285 A |
