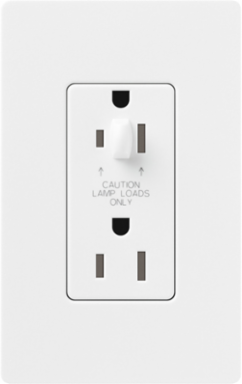

Lutron SCR-15-HDTR-SW-C Satin 15A Dimmer Receptacle, 1875W, 2 Poles, 125V, Unique Half-Dimming Design
Lutron SCR-15-HDTR-SW-C Satin 15A Dimmer Receptacle, 1875W, 2 Poles, 125V, Unique Half-Dimming Design
- MPN: SCR-15-HDTR-SW-C
- UPC: 027557782043
- PPN: LUT-SCR-15-HDTR-SW-C
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$62.23/ EA
Description
Satin 15A Dimmer Receptacle, 1875W, 2 Poles, 125V, Unique Half-Dimming Design
Features
- Features on receptacle(s) for dimming use reject standard plugs
- Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
- Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
- Specification grade construction
- Back wire installation capable
- Receptacle face compatible with NEMA designer and Nova T opening wallplates
- Plug may be used with standard receptacles and with new receptacles designed for dimming use
- Plug is compatible with 18 AWG (0.75 mm2) SPT-2 lamp cords
- Plug uses split-shell design for easy wiring and the ability to control cord exit direction
- Top half for dimming
- Projecting nub prevents standard plug from being used
- Requires replacement plug for dimming table and floor lamps
- Bottom half is a general use receptacle and will fit standard duplex plugs
- Tamper resistant shutter mechanism.
Specifications
Specifications
- Amperage Rating
- 15 A
- Connection
- Screw terminal
- Environmental Conditions
- 0 to 90% humidity, non-condensing
- NEMA Rating
- 5-15R
- Number of Wires
- 3,4,5
- Type
- Receptacle for half-dimming use
- Wattage
- 1875 W
- Insulation
- Plastic
- Material Quality
- Plastic/Metal
- Surface Finishing
- Satin
- Aesthetic Finish
- Satin
- Finish
- Satin
ApplicationLighting Control
Decorative ColorSnow
Family ColorWhite
Number of Poles2
Temperature Rating, Maximum104 F
Voltage Rating125
Wire Size10 to 14
MaterialPlastic/Metal
MountingWallbox
Temperature Rating32 to 104 F
ColorSnow
Size4.69 x 2.94;119 x 75 in;mm
