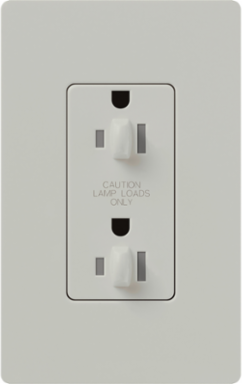

Lutron SCR-20-DDTR-PD-C Satin Dual Dimming Tamper Resistant Receptacle 20A 125V 4.69x2.94 Inch
- MPN: SCR-20-DDTR-PD-C
- UPC: 027557782494
- PPN: LUT-SCR-20-DDTR-PD-C
- UNSPSC: 39121406
CAD
$78.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Satin Dual Dimming Tamper Resistant Receptacle 20A 125V 4.69x2.94 Inch
Features
- Duplex for dimming both connected loads. Projecting nubs prevent standard plugs from being used. Requires replacement plug for dimming table and floor lamps. Tamper resistant shutter mechanism.
- Features on receptacle(s) for dimming use reject standard plugs
- Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
- Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
- Specification grade construction
- Back wire installation capable
- Receptacle face compatible with NEMA designer and Nova T opening wallplates
- Plug may be used with standard receptacles and with new receptacles designed for dimming use
- Plug is compatible with 18 AWG (0.75 mm2) SPT-2 lamp cords
- Plug uses split-shell design for easy wiring and the ability to control cord exit direction
- Duplex for dimming both connected loads
- Projecting nubs prevent standard plugs from being used
- Requires replacement plug for dimming table and floor lamps
- Tamper resistant shutter mechanism
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 20 A |
|---|---|
| Connection | Screw terminal |
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| NEMA Rating | 5-20R |
| Number of Wires | 3,4,5 |
| Type | Receptacle for dimming use |
| Wattage | 2500 W |
| Insulation | Plastic |
| Material Quality | Plastic/Metal |
| Surface Finishing | Satin |
| Aesthetic Finish | Satin |
| Finish | Satin |
| Application | Lighting Control |
|---|---|
| Decorative Color | Palladium |
| Family Color | Gray |
| Number of Poles | 2 |
| Temperature Rating, Maximum | 104 F |
| Voltage Rating | 125 |
| Wire Size | 10 to 12 |
| Material | Plastic/Metal |
| Mounting | Wallbox |
| Temperature Rating | 32 to 104 F |
| Color | Palladium |
| Size | 4.69 x 2.94;119 x 75 in;mm |
