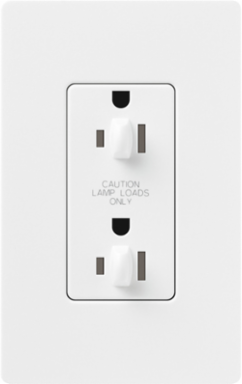

Lutron SCR-20-DDTR-SW-C Satin 20A Tamper Resistant Duplex Dimming Receptacle, 125V, 2500W, Wallbox Mount
Lutron SCR-20-DDTR-SW-C Satin 20A Tamper Resistant Duplex Dimming Receptacle, 125V, 2500W, Wallbox Mount
- MPN: SCR-20-DDTR-SW-C
- UPC: 027557782647
- PPN: LUT-SCR-20-DDTR-SW-C
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$78.05/ EA
Description
Satin 20A Tamper Resistant Duplex Dimming Receptacle, 125V, 2500W, Wallbox Mount
Features
- Features on receptacle(s) for dimming use reject standard plugs
- Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
- Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
- Specification grade construction
- Back wire installation capable
- Receptacle face compatible with NEMA designer and Nova T opening wallplates
- Plug may be used with standard receptacles and with new receptacles designed for dimming use
- Plug is compatible with 18 AWG (0.75 mm2) SPT-2 lamp cords
- Plug uses split-shell design for easy wiring and the ability to control cord exit direction
- Duplex for dimming both connected loads
- Projecting nubs prevent standard plugs from being used
- Requires replacement plug for dimming table and floor lamps
- Tamper resistant shutter mechanism.
Specifications
Specifications
- Amperage Rating
- 20 A
- Connection
- Screw terminal
- Environmental Conditions
- 0 to 90% humidity, non-condensing
- NEMA Rating
- 5-20R
- Number of Wires
- 3,4,5
- Type
- Receptacle for dimming use
- Wattage
- 2500 W
- Insulation
- Plastic
- Material Quality
- Plastic/Metal
- Surface Finishing
- Satin
- Aesthetic Finish
- Satin
- Finish
- Satin
ApplicationLighting Control
Decorative ColorSnow
Family ColorWhite
Number of Poles2
Temperature Rating, Maximum104 F
Voltage Rating125
Wire Size10 to 12
MaterialPlastic/Metal
MountingWallbox
Temperature Rating32 to 104 F
ColorSnow
Size4.69 x 2.94;119 x 75 in;mm
