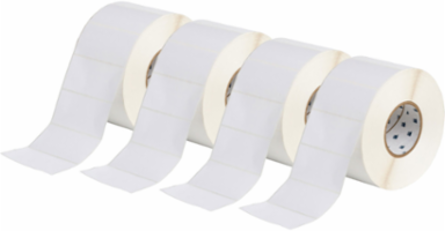

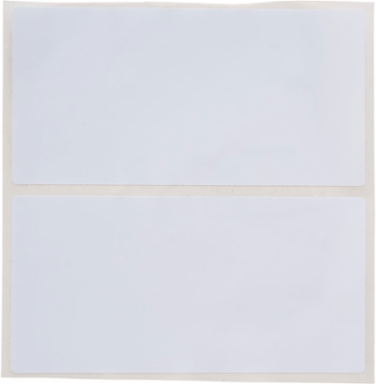

Brady XTHT-55-8423-3 Satin Polyester Labels, 2" H x 4" W, White, Case of 4 Rolls
Brady XTHT-55-8423-3 Satin Polyester Labels, 2" H x 4" W, White, Case of 4 Rolls
- MPN: XTHT-55-8423-3
- UPC: 662820621119
- PPN: BRD-XTHT-55-8423-3
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2162.05/ EA
Description

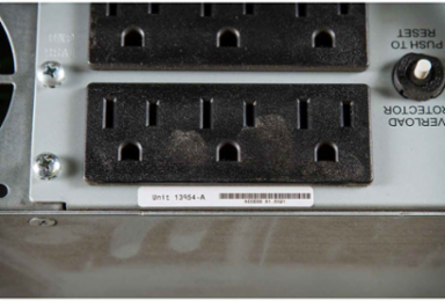

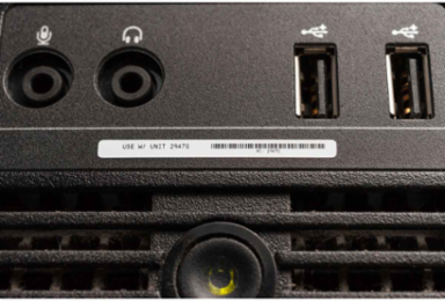

The B?8423 is a white polyester designed for general purpose label, asset identification, rating plate, and warning/instructional labeling.
Features
- Glossy Polypropylene with a permanent acrylic adhesive
- UL Recognized Component and CSA Accepted when printed with the recommended ribbon.
- Service temperature of -40° F to 194° F
Specifications
Specifications
- Brand Name
- Brady®
- Color
- White
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; UL Recognized
- For Use with Printer
- BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- General Identification; Inspection Repair; Rating & Name Plates
- Quantity per Row
- 1
- Shape
- Rectangle
- Total Quantity
- 12000
- Brady Material Number
- B-8423
- Label Properties
- Aggressive Adhesive Labels; Heat Resistant Labels; Permanent Adhesive Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Humidity-Resistant
- Dimensions
- 2 in H x 4 in W
- Dimensions 2
- 2 in H x 4 in W
- Height (mm/cm/m)
- 50.8 mm
- Maximum Service Temperature °C
- 110 °C
- Minimum Service Temperature °C
- -70 °C
- Printable Area Dimensions (Metric)
- 50.8 mm H x 101.6 mm W
- Printable Area Width (mm/cm/m)
- 101.6 mm
- Thickness (in/ft/yd)
- 0.0028 in
- Vertical Repeat
- 2.125 in
- Width (mm/cm/m)
- 101.6 mm
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
FinishSatin
Label/Media FormatRoll
Print TechnologyThermal Transfer
Quantity per Roll3000
Recommended RibbonIP-R6007; R6007
Suggested Ribbon SeriesR4400; R6000 Halogen Free; R6200
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialPolyester
SAP B-NumberB-8423
Dimensions (Metric)50.8 mm H
Height (in/ft/yd)2 in
Label/Tape Size (in/ft/yd)2 in H x 4 in W
Maximum Service Temperature °F230 °F
Minimum Service Temperature °F-94 °F
Printable Area Height (mm/cm/m)50.8 mm
Sign Size-General2 in x 4 in
Thickness (mm/cm/m)0.071 mm
Width (in/ft/yd)4 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
