Schneider Electric

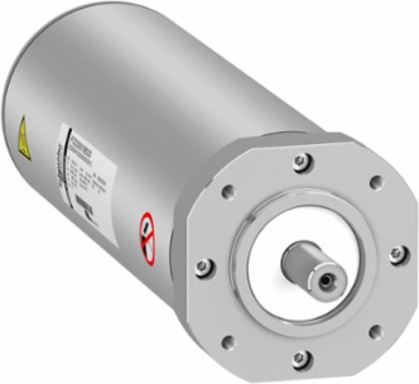

Schneider Electric FCE200519B200 servo motor SHS 058 0,79Nm,no brake,4k RPM

servo motor SHS 058 0,79Nm,no brake,4k RPM
  • MPN: FCE200519B200
  • PPN: SCH-FCE200519B200
  • UNSPSC: 39121021

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2854.58/ EA

Description

servo motor SHS 058 0,79Nm,no brake,4k RPM

Specifications

Complementary

Maximum Permanent Current
0.8 A
Peak Stall Torque
3.2 N.m LXM62 800 mA, 400 V, 3 phase || 3.2 N.m LXM52 800 mA, 400 V, 3 phase
Continuous Power
840 W
Key Width
0 mm
Maximum Mechanical Speed
9000 rpm
Mounting Holes Diameter
5 mm
Holding Torque
0.65 N.m
Mounting Support
flange
Rotor Inertia
0.13 kg.cm²
Back Emf Constant
1.15 V/krpm 20 °C
Shaft End
smooth shaft
Nominal Speed
4000 rpm LXM62 || 4000 rpm LXM52
Holding Brake
without
Stator Resistance
37.1 Ohm
Nominal Torque
0.79 N.m LXM62 400 V three phase || 0.79 N.m LXM52 400 V three phase
Shaft Length
20 mm
Length
225.1 mm
Maximum Current Irms
3.4 A LXM62 || 3.4 A LXM52
Continuous Stall Torque
0.9 N.m LXM62 || 0.9 N.m LXM52
Motor Flange Size
58 mm
Circle Diameter Of The Mounting Holes58 mm
Number Of Mounting Holes4
Shaft Diameter11 mm
Nominal Output Power840 W LXM62 || 840 W LXM52
Switching Frequency8 kHz
Type Of Coolingnatural convection
Maximum Radial Force Fr240 N 4000 rpm
Number Of Motor Stacks3
Number Of Motor Poles76
Maximum Axial Force Fa40 N
Centring Collar Depth2 mm
Electrical Connectioncable with stripped end
Speed Feedback Resolution128 periods
Continuous Stall Current0.8 A
Product CompatibilityLXM62 400 V, three phase || LXM52 400 V, three phase
Phasethree phase
Net Weight2.2 kg
Centring Collar Diameter40 mm
Stator Inductance84.1 mH
[Us] Rated Supply Voltage400 V

Specifications

Length
225.1 mm
Weight
2.2 kg
Range Compatibility
PacDrive 3
Device Short Name
SHS
Width0 mm
Encoder Typeabsolute multiturn SinCos Hiperface
Product Or Component Typeservo motor

Environment

Ip Degree Of Protection
IP69K motor: conforming to IEC 60034-5 || IP67 motor: conforming to IEC 60034-5
