Schneider Electric

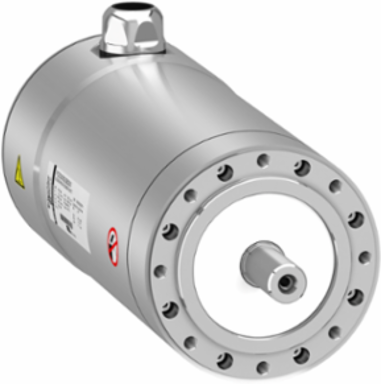

Schneider Electric FCE200523B200 servo motor SHS 100 3,0Nm,brake,4k RPM

servo motor SHS 100 3,0Nm,brake,4k RPM
  • MPN: FCE200523B200
  • PPN: SCH-FCE200523B200

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$4108.17/ EA

Description

servo motor SHS 100 3,0Nm,brake,4k RPM

Specifications

Complementary

Circle Diameter Of The Mounting Holes
100 mm
Peak Stall Torque
28.3 N.m LXM62 3100 mA, 400 V, 3 phases || 28.3 N.m LXM52 3100 mA, 400 V, 3 phases
Continuous Power
1260 W
Key Width
6 mm
Maximum Mechanical Speed
6000 rpm
Mounting Holes Diameter
8 mm
Holding Torque
4.65 N.m
Mounting Support
flange
Rotor Inertia
3.22 kg.cm²
Back Emf Constant
2.1 V/krpm 20 °C
Shaft End
smooth shaft
Nominal Speed
4000 rpm LXM62 || 4000 rpm LXM52
Holding Brake
without
Stator Resistance
1.4 Ohm
Nominal Torque
3 N.m LXM62 400 V three phase || 3 N.m LXM52 400 V three phase
Shaft Length
40 mm
Length
270.7 mm
Maximum Current Irms
28.3 A LXM62 || 28.3 A LXM52
Continuous Stall Torque
6.75 N.m LXM62 || 6.75 N.m LXM52
Motor Flange Size
100 mm
Maximum Permanent Current3.1 A
Number Of Mounting Holes4
Shaft Diameter19 mm
Nominal Output Power1260 W LXM62 || 1260 W LXM52
Switching Frequency8 kHz
Type Of Coolingnatural convection
Maximum Radial Force Fr660 N 4000 rpm
Number Of Motor Stacks3
Number Of Motor Poles146
Maximum Axial Force Fa160 N
Centring Collar Depth3.5 mm
Electrical Connectioncable with stripped end
Speed Feedback Resolution128 periods
Continuous Stall Current5.7 A
Product CompatibilityLXM62 400 V, three phase || LXM52 400 V, three phase
Network Number Of Phasesthree phase
Net Weight10 kg
Centring Collar Diameter85 mm
Stator Inductance8.8 mH
[Us] Rated Supply Voltage400 V

Specifications

Encoder Type
absolute multiturn SinCos Hiperface
Product Or Component Type
servo motor
Range CompatibilityPacDrive 3
Device Short NameSHS

Environment

Ip Degree Of Protection
IP69K motor: conforming to IEC 60034-5 || IP67 motor: conforming to IEC 60034-5
