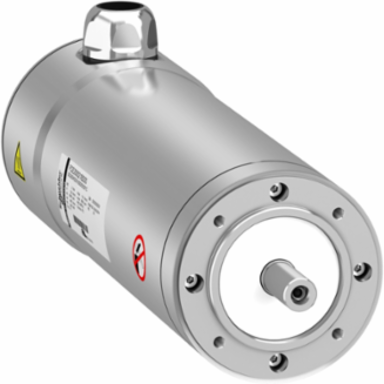

Schneider Electric FCE200522B200 Servo Motor SHS 071 3.85 Nm, Brake, 2000 RPM, 71 mm Flange
- MPN: FCE200522B200
- PPN: SCH-FCE200522B200
CAD
$3738.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for high-performance applications, this servo motor from Schneider Electric delivers impressive torque and speed, making it an essential component in automation and motion control systems. With a peak stall torque of 18.3 N m and a maximum mechanical speed of 8000 RPM, it efficiently handles demanding tasks while maintaining reliability and precision. The motor features a robust design with a flange mounting support, ensuring easy integration into existing systems, while its IP69K protection rating guarantees durability in harsh environments. With a nominal output power of 810 W and advanced feedback capabilities through an absolute multiturn SinCos Hiperface encoder, this servo motor is engineered to meet the rigorous demands of modern industrial applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
Physical Attributes
- Key Width
- 5 mm
- Shaft Length
- 30 mm
Motor Flange Size71 mm
Complementary Attributes
- Maximum Current Irms
- 9 A LXM62, 9 A LXM52
- Line Rated Current
- 1.9 A
- Maximum Axial Force Fa
- 160 N
- Maximum Operational Altitude
- 1000.0 m
- Maximum Radial Force Fr
- 790 N 2000 rpm
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed8000 rpm
Maximum Permanent Current2 A
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM
- Continuous Stall Torque
- 4.65 N.m LXM62, 4.65 N.m LXM52
- Nominal Speed
- 2000 rpm2000 rpm LXM62, 2000 rpm LXM52
- Peak Stall Torque
- 18.3 N.m LXM62 1900 mA, 400 V, 3 phase, 18.3 N.m LXM52 1900 mA, 400 V, 3 phase
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Centring Collar Diameter
- 85 mm
- Continuous Power
- 810 W
- Derating Altitude Scale
- 100.0 m
- Device Short Name
- SHS
- Encoder Type
- absolute multiturn SinCos Hiperface
- Holding Torque
- 2.5 N.m
- Maximum Operational Altitude
- 1000.0 m
- Motor Figures
- 400.0 V
- Mounting Support
- flange
- Number Of Motor Poles
- 4
- Number Of Mounting Holes
- 4
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- Yes
- Shaft Diameter
- 19 mm
- Sizing Reference
- SC005H3202
- Stator Inductance
- 45.7 mH
- Sustainable Packaging
- No
- Temperature Copper Hot
- 130 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 400 V
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8501528040
Persona Type NamesEnd User, Original Equipment Manufacturer
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Nominal Torque3.85 N.m LXM62 400 V three phase, 3.85 N.m LXM52 400 V three phase
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Scope PerimeterAt least in Europe
Without Single Use PlasticNo
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes100 mm
Continuous Stall Current2.2 A
Derating Temperature Scale80.0 °C
Electrical Connectioncable with stripped end
Holding Brakewith
Inertia0.62 kg.cm² of brake2.31 kg.cm² of motor
Minimum Operational Altitude0.0 m
Mounting Holes Diameter8 mm
Network Number Of Phases3
Number Of Motor Stacks2
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia2.93 kg.cm²
Shaft Endsmooth shaft
Speed Feedback Resolution128 periods
Stator Resistance8.6 Ohm
Switching Frequency8 kHz
Torque Constant2.1 N.m/A
Length Total284 mm
Maximum [In] Rated Current1.9 A
Package Weight(Lbs)7.25 kg
Warranty (In Months)18
Environment Attributes Main
- Ip Degree Of Protection
- IP69K motor: conforming to IEC 60034-5, IP67 motor: conforming to IEC 60034-5
- Take Back
- No
- Packaging Made With Recycled Cardboard
- Yes
Product CompatibilityLXM62 400 V, three phase, LXM52 400 V, three phase
Recycled Metal Content At Cr Level0 %
Packaging Without Single Use PlasticNo
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 810 W LXM62, 810 W LXM52
Output Current 3s Peak9.0 A
