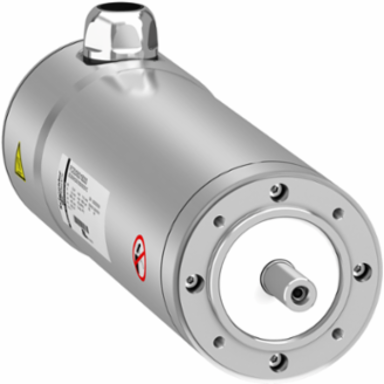

Schneider Electric FCE200521B200 Servo Motor SHS 071 1.55 Nm, 6000 RPM, IP69K, Flange Mounting

MPN: FCE200521B200
PPN: SCH-FCE200521B200
UNSPSC: 39121021

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for high-performance applications, this servo motor from Schneider Electric exemplifies advanced motion control technology. With a torque rating of 1.55 Nm and an impressive speed of 6000 RPM, it is designed to excel in demanding automation environments. The robust IP69K protection ensures reliability in harsh conditions, making it an ideal choice for various industrial setups. Its flange mounting allows for straightforward integration into existing systems, enhancing operational efficiency in automation and control applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany

Physical Attributes

Key Width	5 mm
Shaft Length	30 mm

Motor Flange Size	71 mm

Complementary Attributes

Maximum Current Irms	9 A LXM62, 9 A LXM52
Line Rated Current	2.35 A
Maximum Axial Force Fa	80 N
Maximum Operational Altitude	1000.0 m
Maximum Radial Force Fr	790 N 2000 rpm
Us Rated Supply Voltage	400 V

Minimum Ambient Air Temperature For Operation	-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation	60.0 °C
Maximum Mechanical Speed	8000 rpm
Maximum Permanent Current	2.3 A
Minimum Operational Altitude	0.0 m
Maximum In Rated Current	2.35 A

Important Information Attributes

Persona Type Ids	EU, OM
Continuous Stall Torque	4.65 N.m LXM62, 4.65 N.m LXM52
Nominal Speed	6000 rpm2000 rpm LXM62, 2000 rpm LXM52
Peak Stall Torque	18.3 N.m LXM62 1900 mA, 400 V, 3 phase, 18.3 N.m LXM52 1900 mA, 400 V, 3 phase
Local Publishable Date	2026-01-12
Scope Perimeter	At least in Europe
Without Single Use Plastic	No
Tier Id	3
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Circle Diameter Of The Mounting Holes	71 mm
Continuous Stall Current	3.6 A
Derating Temperature Scale	80.0 °C
Electrical Connection	cable with stripped end
Holding Brake	without
Motor Figures	400.0 V
Mounting Support	flange
Number Of Motor Poles	3
Number Of Mounting Holes	4
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	Yes
Shaft Diameter	14 mm
Sizing Reference	SC005H2301
Stator Inductance	45.7 mH
Sustainable Packaging	No
Temperature Copper Hot	130 °C
Type Of Cooling	natural convection
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	End User, Original Equipment Manufacturer
Inertia	0.62 kg.cm² of brake0.58 kg.cm² of motor, 2.31 kg.cm² of motor
Nominal Torque	3.85 N.m LXM62 400 V three phase, 3.85 N.m LXM52 400 V three phase
Local Data Status	Publishable
Return Indicator	Y
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Advanced
Market Segmentation	Industrial
Centring Collar Diameter	60 mm
Continuous Power	970 W
Derating Altitude Scale	100.0 m
Device Short Name	SHS
Encoder Type	absolute multiturn SinCos Hiperface
Holding Torque	2.5 N.m
Mounting Holes Diameter	6 mm
Network Number Of Phases	3
Number Of Motor Stacks	3
Phase	three phase
Product Or Component Type	servo motor
Rotor Inertia	0.81 kg.cm²
Shaft End	smooth shaft
Speed Feedback Resolution	128 periods
Stator Resistance	8.6 Ohm
Switching Frequency	8 kHz
Torque Constant	2.1 N.m/A
Length Total	284 mm
Customs Code	8501528040

Environment Attributes Main

Ip Degree Of Protection	IP69K motor: conforming to IEC 60034-5, IP67 motor: conforming to IEC 60034-5
Take Back	No
Packaging Made With Recycled Cardboard	Yes
