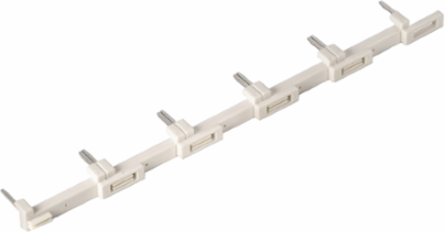

Weidmuller 1132080000 SCM-I QV S
- MPN: 1132080000
- PPN: WDM-1132080000
CAD
$13.28
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RIDERSERIES RCM, Cross-connector
Documentation & Downloads
Specifications
General Data
| Version | can be cut to length |
|---|
| Colour | white |
|---|
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 6.7 g |
|---|
Connection Data
| Pitch in mm (P) | 27 mm |
|---|
Cross-Connection Data
| Rated current | 12 A |
|---|---|
| Touch-safe protection | Yes |
| Number of cross-connected terminals | 6 |
| Version | can be cut to length |
| Insulation | Yes |
|---|---|
| Colour | white |
| Pitch in mm (P) | 27 mm |
Classifications
| ETIM 6.0 | EC002586 |
|---|---|
| eClass 9.1 | 27-37-16-92 |
| ETIM 7.0 | EC002586 |
|---|---|
| eClass 10.0 | 27-37-16-92 |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -45 °C...70 °C |
| Operating temperature, min. | -45 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
