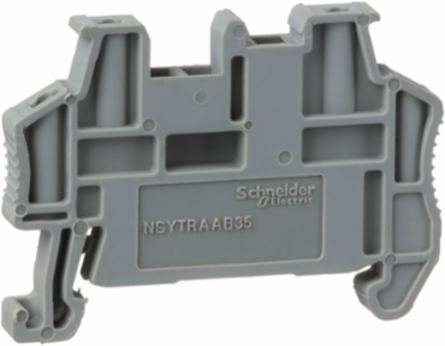

Schneider Electric NSYTRAAB35 Linergy TR End Stop, 35mm DIN Rail, 5.15mm Thick, Clip-On
- MPN: NSYTRAAB35
- PPN: SCH-NSYTRAAB35
CAD
$3.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy terminal blocks offer three terminal block technologies. The traditional screw connection, the spring clamp connection, and the new pushin connection. The industrial control, machine tool, packaging, material hadling, HVAC, textile, hoisting, water, marine, critiical power, elevator industries and many more use these terminal blocks for their connection requirements. These terminal blocks are designed for fast and easy installation. A wide variety of accessories are availble for these blocks to make your total installation easier. Linergy terminal blocks meet international standards, including UL Component Recognition and CSA certification.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Costa Rica, Germany, Spain, France, India, Poland, United States |
|---|
Physical Attributes
| Color | Gray |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2518 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Short Name | TRA |
| Mounting Mode | clip-on |
| Product Name | TR |
| Quantity Per Set | set of 50 |
| Range Of Product | Linergy |
| Sustainable Packaging | No |
| Length Total | 48.5 mm |
| Halogen-free Status | Halogen free plastic parts product |
| Package Weight(Lbs) | 4.000 g |
| Take-back | No |
| Customs Code | 3926909989 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | N |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | end stop |
| Range | Linergy |
| Returnability | Yes |
| Thickness | 5.15 mm |
| Accessory / Separate Part Category | mounting accessory |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | Yes |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | TRV screw terminal terminal blockTRP push-in terminal blockTRR spring terminal terminal blockTRH IDC terminal block |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Without Single Use Plastic | No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | end stop |
|---|
| Range Of Product | Linergy |
|---|
ETIM
| ETIM 8 | EC001041 |
|---|
| ETIM 9 | EC001041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
