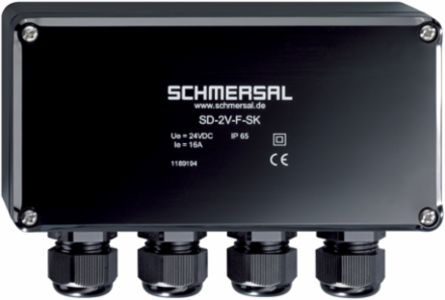

Schmersal 101189194 SD Junction Box 2-Way 160 mm Width, IP65 Protection, 24 VDC Operating Voltage
- MPN: 101189194
- PPN: SCM-101189194
CAD
$526.29
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SD Junction Box 2-Way 160 mm Width, IP65 Protection, 24 VDC Operating Voltage
Documentation & Downloads
Specifications
Key Specifications
| Width | 160 mm |
|---|---|
| Depth | 57 mm |
| Height | 106.5 mm |
|---|
Electrical data
| Operating voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
|---|---|
| Operating current | 16,000 mA |
| Rated operating voltage | 24 VDC |
|---|
Note
| Note (General) | To each SD junction box, 2 (optionally 3) components can be connected. |
|---|

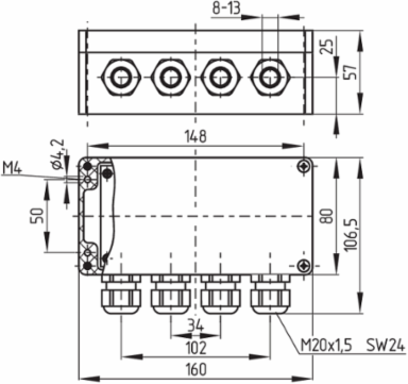

Mechanical data - Dimensions
| Width | 160 mm |
|---|---|
| Depth | 57 mm |
| Height | 106.5 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 32 VDC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution | 3 |
General data
| Terminal (mechanical) | Screw connection |
|---|---|
| Gross weight | 408 g |
| Enclosure material | Plastic, thermoplastic, self-extinguishing |
|---|
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Relative humidity, minimum | 30 % |
| Note (Relative humidity) | non-condensing |
| Ambient temperature | -25 ... +70 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Relative humidity, maximum | 95 % |
| Protection class | II |
Mechanical data - Connection technique
| Cable section, minimum | 0.25 mm² |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
| Cable section, maximum | 2.5 mm² |
|---|
