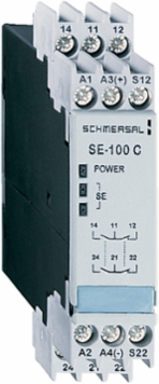

Schmersal 101153919 Safety-Related Tactile Sensor, 22.5 mm Width, 121 mm Depth, 24 VDC Operating Voltage
- MPN: 101153919
- PPN: SCM-101153919
CAD
$309.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety-Related Tactile Sensor, 22.5 mm Width, 121 mm Depth, 24 VDC Operating Voltage
Documentation & Downloads
Specifications
Key Specifications
| Width | 22.5 mm |
|---|---|
| Depth | 121 mm |
| Height | 100 mm |
|---|
Electrical data
| Operating voltage | 24 VDC -10 % / +20 % |
|---|---|
| Operating current | 150 mA |
| Rated control voltage at DC, maximum | 28.8 VDC |
| Utilisation category AC-15 | 2 A |
| Utilisation category DC-13 | 2 A |
| Time to readiness, maximum | 300 ms |
| Rated operating voltage | 24 VDC |
|---|---|
| Rated AC voltage for controls at DC minimum | 21.6 VDC |
| Utilisation category AC-15 | 230 VAC |
| Utilisation category DC-13 | 24 VDC |
| Electrical power consumption, maximum | 4 W |
Note
| Note (General) | The overall machine safety depends on the professional mounting and installation of the safety monitoring module and the signal transmitter, as well as on the correct and professional electrical connection of the components. | If there it any risk whatsoever, the machine may not be restarted. |
|---|
Mechanical data - Dimensions
| Width | 22.5 mm |
|---|---|
| Depth | 121 mm |
| Height | 100 mm |
|---|
Ambient conditions - Insulation values
| Rated impulse withstand voltage U | 4 kV |
|---|---|
| Degree of pollution | 2 |
| Overvoltage category | III |
|---|
General data - Features
| Stop-Category | 0 |
|---|---|
| Wire breakage detection | Yes |
| Automatic reset function | Yes |
| Earth connection detection | Yes |
| Number of auxiliary contacts | 1 |
| Number of safety contacts | 1 |
| Electronic Fuse | Yes |
|---|---|
| Cross-circuit detection | Yes |
| Reset after disconnection of supply voltage | Yes |
| Integral system diagnostics, status | Yes |
| Number of LEDs | 2 |
| Number of signalling outputs | 1 |
General data
| Standards | EN ISO 13849-1 | EN ISO 13850 |
|---|---|
| Enclosure material | Plastic, PE (Black), Crastin (Grey) |
| Reaction time, maximum | 16 ms |
| Climatic stress | EN ISO 13856-2 |
|---|---|
| Gross weight | 166 g |
Safety classification
| Performance Level, up to | c |
|---|---|
| Control category to EN954 | 1 |
| Note (PFH-value) | up to max. 5,000 switching cycles/year |
| Category | 1 |
|---|---|
| PFH value | 2.24 x 10⁻⁶ /h |
| Mission time | 20 Year(s) |
Wiring example

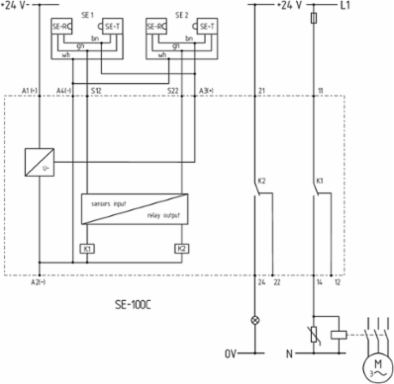

| Note (Wiring diagram) | Monitoring the safety edges SE 40 / SE 70 with a safety monitoring unit SE-100C up to PL c and Category 1. | If only one safety edges is connected, the terminals S12/S22 must be bridged. | The manual reset function, if required, is realised by the machine control. | Both re-initialisation and auto-reset must comply with the requirements of EN 1760-2 (diagram A2, A3). | The wiring diagram is shown for the de-energised condition. |
|---|
Other data
| Note (applications) | Safety edges |
|---|
Ambient conditions
| Degree of protection of the enclosure | IP40 |
|---|---|
| Degree of protection of clips or terminals | IP20 |
| Resistance to vibrations | 10 … 55 Hz, amplitude 0.15 mm |
| Degree of protection of the mounting space | IP54 |
|---|---|
| Ambient temperature | +5 ... +55 °C |
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 2 x 1.5 mm² |
| Length of cable | 200 m |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
Mechanical data
| Mechanical life, minimum | 20,000,000 Operations |
|---|
| Mounting | Snaps onto standard DIN rail to EN 60715 |
|---|
Approvals - Standards
| Certificates | TÜV | cULus |
|---|
Electrical data - Electromagnetic compatibility (EMC)
| EMC rating | EMC-Directive |
|---|
Status indication
| Indicated operating states | Safety edge function |
|---|
