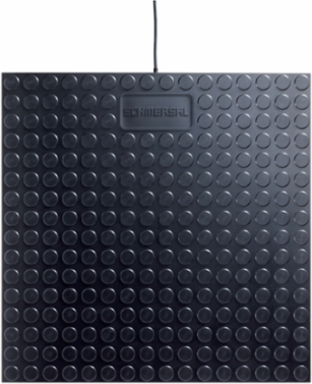

Schmersal 101208368 SMS Safety Sensor, 750 mm Width, 1,000 mm Length, IP65 Rated
- MPN: 101208368
- PPN: SCM-101208368
CAD
$917.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SMS Safety Sensor, 750 mm Width, 1,000 mm Length, IP65 Rated
Features
- Robust design
- Modular switching mat system
- Special sizes are available on request
- Maintenance free
- Simple mounting
- Slip-free surface
- High resistance to chemicals
- No additional terminating resistor required
- No additional baseplate
- 4-wire connecting cable
Documentation & Downloads
Specifications
Key Specifications
| Length | 1,000 mm |
|---|---|
| Height | 14 mm |
| Width | 750 mm |
|---|

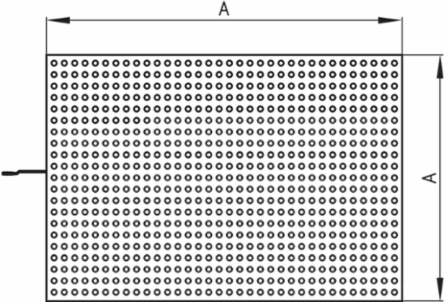

Mechanical data - Dimensions
| Width | 750 mm |
|---|
| Height | 14 mm |
|---|
General data - Features
| Cascadable | Yes |
|---|
General data
| Standards | EN ISO 13849-1 | EN ISO 13856-1 |
|---|---|
| Shore hardness | 78 ±5 A |
| Grammage | 25 kg/m |
| Maintenance | maintenance free | Annual maintenance is recommended. |
| Material of the surface/surface material | Polyurethane PUR |
|---|---|
| Gross weight | 23,000 g |
| Reaction time, maximum | 25 ms |
Notes - Chemical resistance
| Material resistance (water) | resistent |
|---|---|
| Material resistance (10% lyes) | resistent |
| Material resistance (oil) | resistent |
| Material resistance (10% acids) | resistent |
|---|---|
| Material resistance (petrol) | resistent |
Safety classification
| Performance Level, up to | d |
|---|---|
| Safety Integrity Level (SIL), suitable for applications in | 2 |
| Note (Category) | To max. 52,000 switching cycles/year with max. 60% contact load; deviating applications on request. |
| Category | 3 |
|---|---|
| Mission time | 20 Year(s) |
Ambient conditions
| Degree of protection | IP65 |
|---|
| Ambient temperature | +0 ... +60 °C |
|---|
Mechanical data - Connection technique
| Termination | Cable |
|---|---|
| Wire cross-section | 0.34 mm |
| Length of cable | 6 m |
|---|---|
| Wire cross-section | 22 AWG |
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Note (Actuating force) | With round body Ø 80mm |
| Notice (Admissable load) | With round body Ø 80mm |
| Actuating force | 150 N |
|---|---|
| Admissable load | 20 N/mm | |
| Inactive border | 16 mm |
Accessory
| Recommended safety switchgear | SRB 301HC/R, | SRB 301HC/T |
|---|
Approvals - Standards
| Certificates | TÜV | cULus |
|---|
